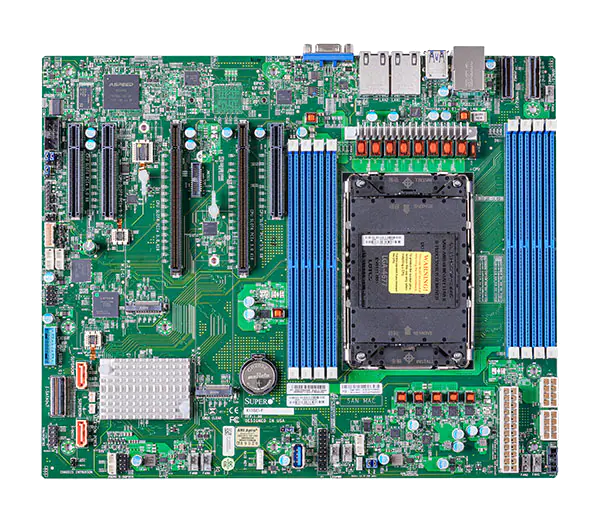

Caratteristiche Tecniche
| CPU | 4th Gen Intel® Xeon® Scalable processors, Single Socket LGA-4677 (Socket E), CPU TDP supports up to 350W TDP |
|---|---|
| Chipset | Intel C741® Chipset |
| RAM | 8 DIMM slots Up to 2TB 3DS ECC RDIMM, DDR5-4800MHz |
| LAN | 2 x LAN with 1GbE with Intel® I210,1 x RJ45 Dedicated IPMI LAN port |
| I/O | 4 x USB 3.2 Gen1 (2 rear, 1 Type-A, 1 via header), 2 x USB 2.0 (2 rear), 1 x COM Port(s) (1 header) |
| Storage | 10 x SATA3 (6Gbps) port(s), 2 x SATA DOM (Disk on Module) power connector support |
| Expansion | 3 x PCIe 5.0 x8, 2 x PCIe 5.0 x16, 2 x M.2 PCIe 5.0 x4 Form Factor: 2280 22110 M-Key, 2 x PCIe 5.0 x8 PCIe5.0 MCIO connector |
| Operative range | – |
| Power | ATX |
| Notes | – |
