Caratteristiche Tecniche
| CPU | Supports 3rd Gen Intel® Xeon® Scalable Processors |
|---|---|
| Chipset | Intel® C621A |
| RAM | 8 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, and Intel® Optane™ Persistent Memory |

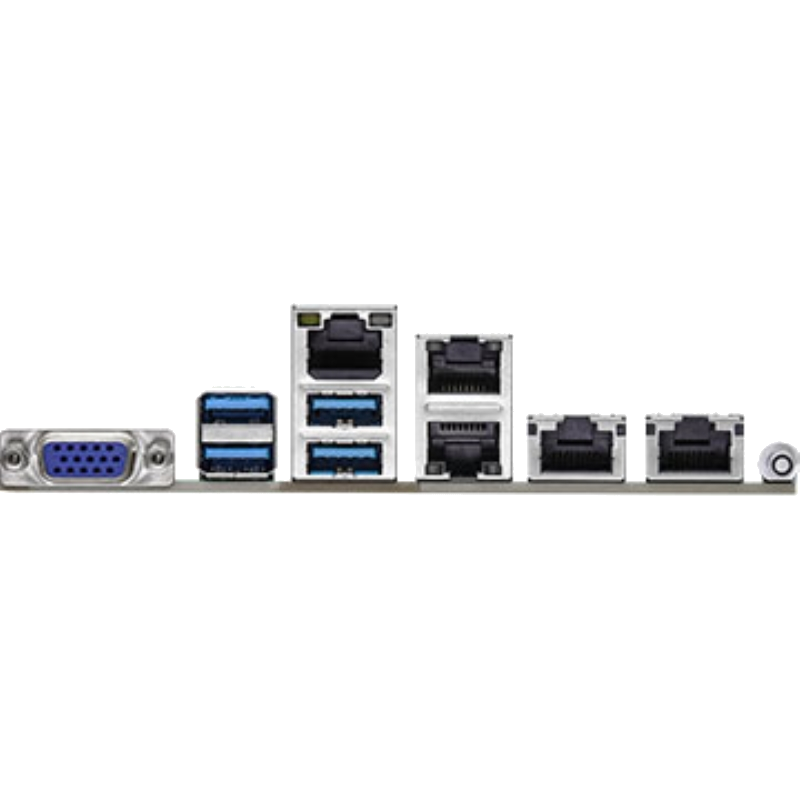

| LAN | 2 X RJ45 (10GbE) by Intel® X710-AT2, 2 X RJ45 (1GbE) by Intel® i210, 1 X dedicated IPMI |
| I/O | 4 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 2 X USB2.0 (9-pin),1 X USB2.0 (Type-A), 1 X COM |
| Storage | 12 SATA 6Gb/s, RAID 0/1/5/10: 1 X Mini-SAS HD, 4 X SATA 7-pin, 2 X SATA DOM, 2 M.2 (1 X PCIe3.0 x4 or SATA 6Gb/s, 1 X PCIe3.0 x1 or SATA 6Gb/s |
| Expansion | 4 X PCIe4.0 x16, 3 X PCIe4.0 x8 |
| Operative range | -25°C to 60°C |
| Power | 10°C ~ 35°C |
| Notes | – |
