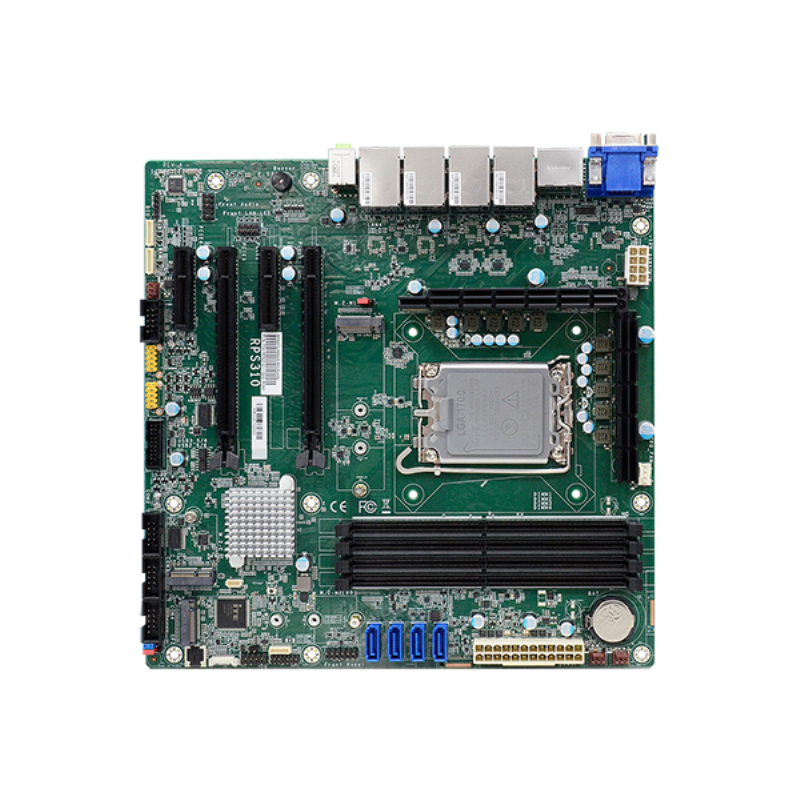

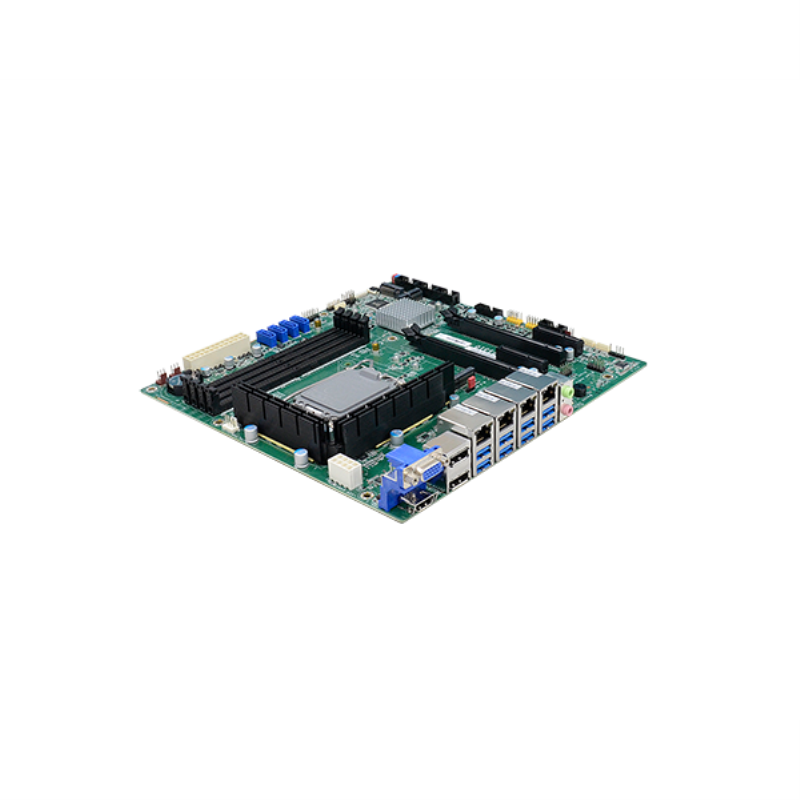

RPS310-R680E
Richiedi informazioni
Caratteristiche Tecniche
| CPU | 14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W |
|---|---|
| Chipset | Intel® H680E Chipset |
| RAM | Four 288-pin UDIMM up to 192GB (ECC/Non-ECC); Dual Channel DDR5 up to 4400 MHz |
| LAN | 1 x Intel® I226-LM (Core i9/i7/i5 support iAMT); 1 x Intel® I226-V; 2 x Intel® I226-V; 2 x 2.5GbE (RJ-45) or 4 x 2.5GbE (RJ-45) |

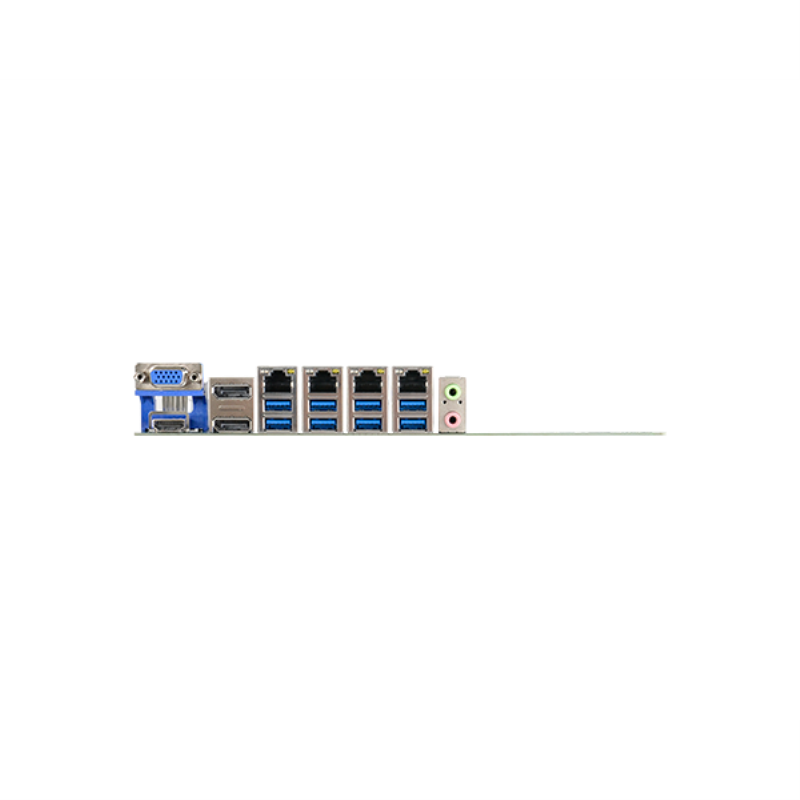

| I/O | 4 x USB 3.2 Gen 2; 4 x USB 3.2 Gen 1; 2 x USB 3.2 Gen1; 3 x USB 2.0 (2.54mm pitch); (1 x USB 2.0 colay vertical Type A); 2 x RS-232/422/485; (RS-232 w/ power) (2.54mm); 2 x DP++; 1 x HDMI 2.0a; 1 x VGA |
| Storage | 4 x SATA 3.0 (up to 6Gb/s); RAID 0/1/5/10 |
| Expansion | 2 x PCIe x16 (Gen 4)(1 x16 signals or 2 x8 signals); 2 x PCIe x4 (Gen 4); 1 x M.2 2230 E key; (opt. PCIe/USB 2.0/Intel CNVi support); (Discrete Wifi 6E support); 1 x M.2 2242/2260/2280 M key; (PCIe x4 Gen4 NVMe/SATA support); 1 x M.2 2242/2260/2280 M key (PCIe x4 Gen4 NVMe support) |
| Operative range | -5° to +65° C |
| Power | ATX |
| Notes | Certifications: CE, FCC Class B, RoHS, UKCA, KC |
