General Features
| CPU | 10th Gen Intel® Xeon®/Intel® Core processors, up to 80W TDP |
|---|---|
| Chipset | Intel® W480E |
| RAM | Dual Channel DDR4 SO-DIMM 2933 MHz, up to 64 GB |
| LAN | 1 x 2.5GigE RJ45, 1 x GigE RJ45 |

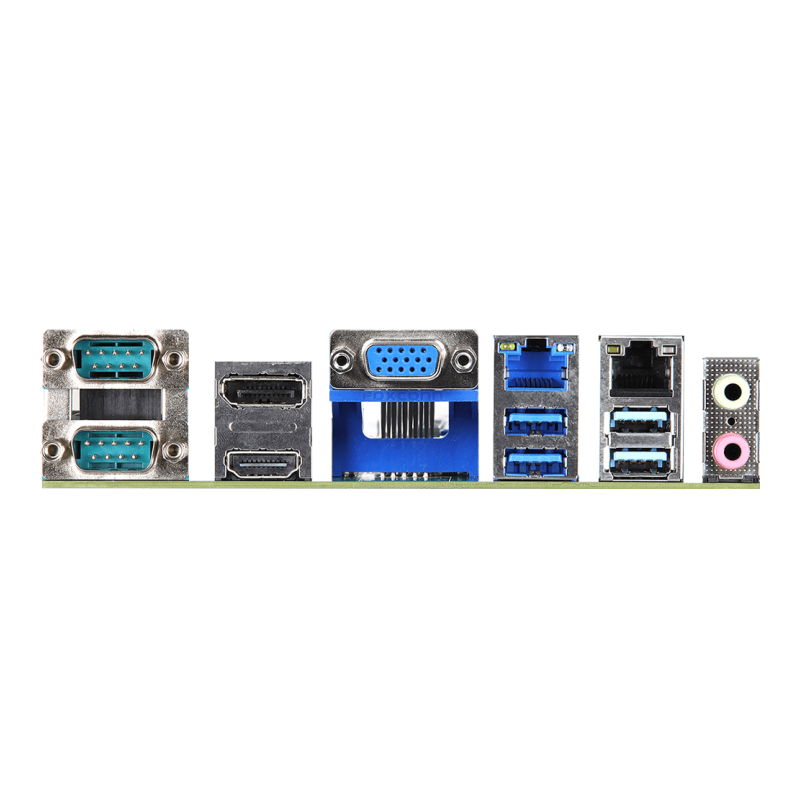

| I/O | 6 x USB 3.2, 4 x USB 2.0, 2 x COM (RS232/422/485), 3 X COM (RS232), 4 x GPO, 4 x GPI |
| Storage | 4 x SATA3 (6 Gb/s), 1 x M.2 Key M |
| Expansion | 1 x PCIe x16, 1 x M.2 Key B, 1 x M.2 Key E |
| Operative range | 0°C to 60°C |
| Power | ATX |
| Notes | – |
