Caratteristiche generali
| CPU | Dual Socket LGA 2011 R3 Support Intel® Xeon Processor E5-2600/4600 v3 series |
|---|---|
| Chipset | Intel® C612 |
| RAM | Quad Channel, 8 DIMM, DDR4 2133/1866/1600 U DIMM, ECC DIMM, R DIMM, LR DIMM |
| LAN | 2 x GigE RJ45, 1 x IPMI |

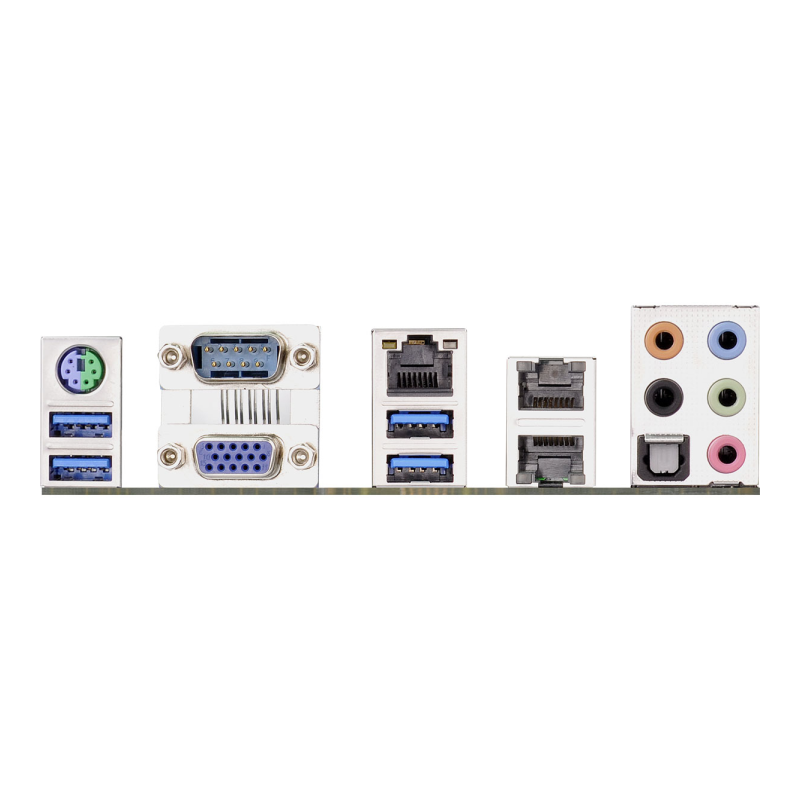

| I/O | 5 x USB 3.1, 7 x USB 3.0, 2 x USB 2.0 |
| Storage | 9 x SATA3 6.0 Gb/s by Intel® C612(including 1 x SATA Express and 2 SATA DOM) (support RAID 0, 1, 5, 10), 2 x SATA3 6Gbps by Marvell 9172 |
| Expansion | 4 x PCIe 3.0 x16, 3 x PCIe 3.0 x8 |
| Operative range | – |
| Power | ATX |
| Notes | – |
