Caratteristiche generali

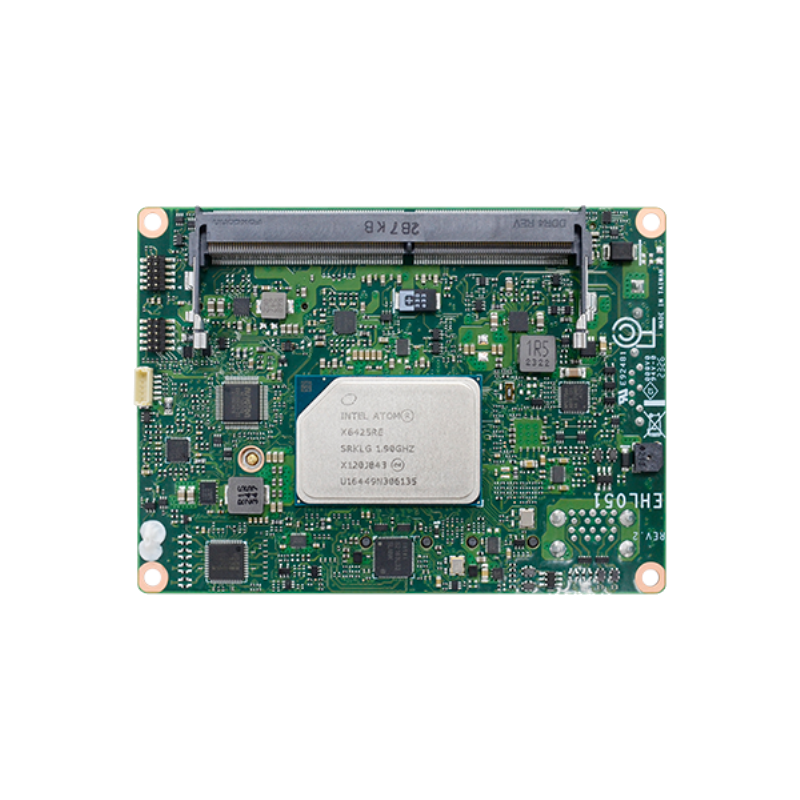

| CPU | Intel Atom® X Series Processors Elkhart Lake |
|---|---|
| Chipset | – |
| RAM | Two 260-pin SODIMM up to 32GB,Dual channel DDR4 up to 3200MHz |
| LAN | 2 x Intel® I225LM/IT (10/100/1000Mbps) |

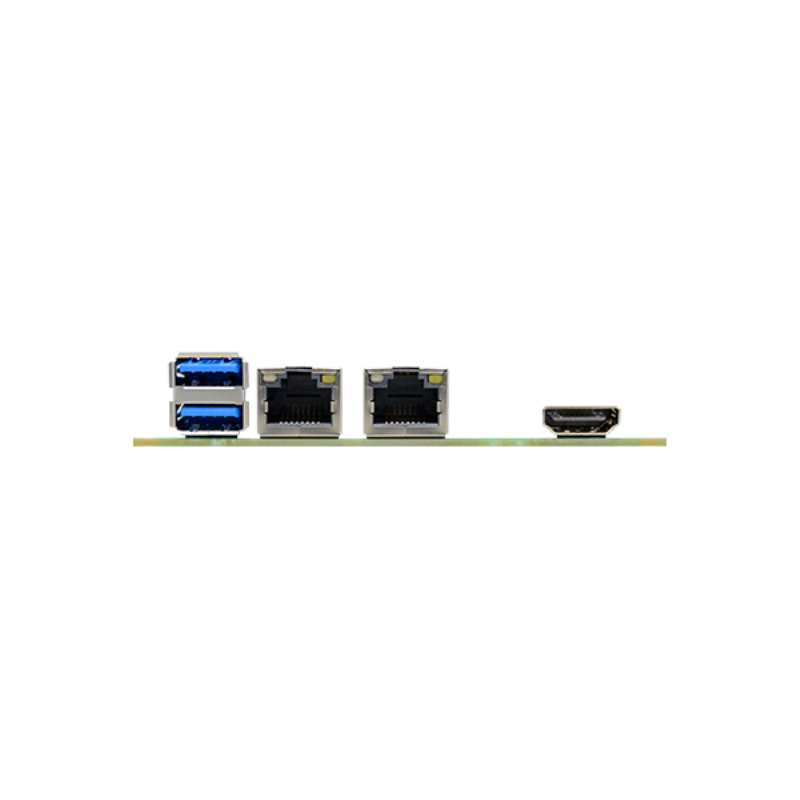

| I/O | 2 x USB 3.2, 2 x USB 2.0 (Internal), 2 x COM (RS232/422/485) (Internal), 1 x HDMI, 1 x LVDS |
| Storage | 1 x SATA 3.0 (up to 6Gb/s) |
| Expansion | 1 x M.2 2230 E Key (PCIe/USB2.0), 1 x M.2 3042/2242 B Key (PCIe/USB3.0/SATA), Optional with 1 x SIM slot |
| Operative range | -5°C to 65°C |
| Power | 12Vdc |
| Notes | CE, FCC, RoHS |
