Caratteristiche Tecniche
| CPU | Intel Atom Elkhart Lake, Industrial (Atom x6425RE 4C 1.9GHz 12W, Atom x6414RE 4C 1.5GHz 9W) Embedded (Atom x6425E 4C 2.0GHz (3.0GHz) 12W, Atom x6413E 4C 1.5GHz(3.0GHz) 9W), PC Client (Celeron N6210 2C 1.2GHz(2.6GHz) 6.5W) |
|---|---|
| Chipset | – |
| RAM | Single DDR4-3200 SODIMM Up to 32GB |
| LAN | 2 x Intel® I225-IT PCIe |

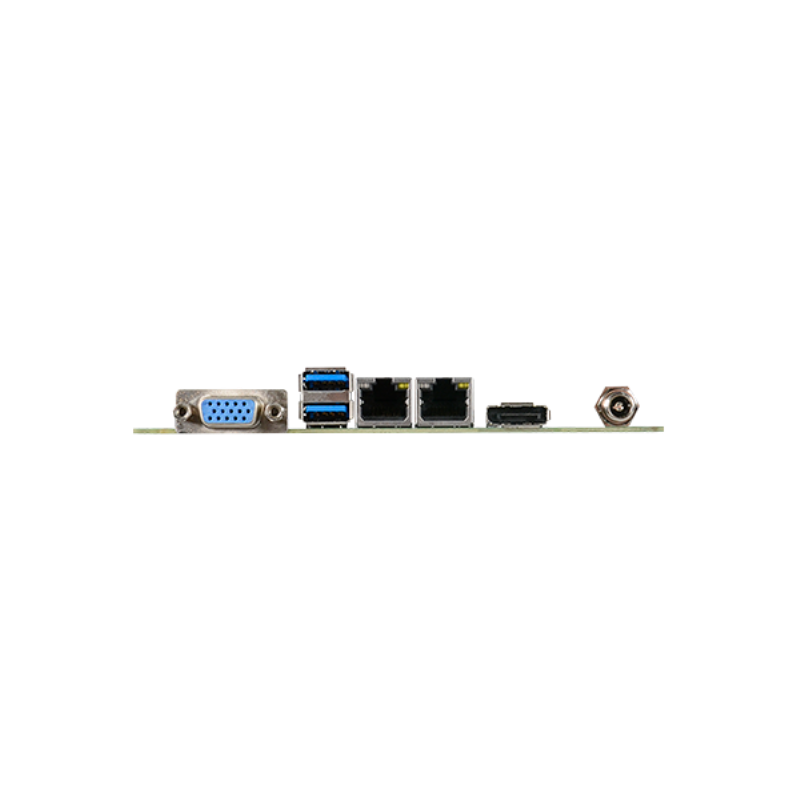

| I/O | REAR I/O: 2 x USB 3.1 Gen2 10Gbps, 1 x DP++, 1 x VGA. INTERNAL I/O: Serial 1 x RS232/422/485 + 1 x RS232 or 1 x RS232/422/485 + 8bit DIO (BIOS select), 4 x USB 2.0, 1 x LVDS or eDP + Backlight, 1 x Audio (Line-out/Mic-in). |
| Storage | 1 x SATA 3.0 |
| Expansion | 1 x M.2 2230 E key (USB/PCIe) (Support WiFi 5 & WiFi 6), 1 x mini-PCIe (USB/PCIe) or M.2 2280 Key B SATA I2C (optional, not available with M.2 2280) |
| Operative range | -40 to 85°C |
| Power | Wide Range 9~36VDC |
| Notes | – |
