Caratteristiche Tecniche
| CPU | Intel® 12th Gen Core™ i9/i7/i5/i3 Processor, supports LGA1700 CPU Up to 125W Max |
|---|---|
| Chipset | Intel® R680E |
| RAM | 4 DIMM Up to 128GB Dual Channel DDR4 3200MHz |
| LAN | 1 x dual-deck RJ45 for 2 x 10G LAN (BOM optional), 1 x dual-deck RJ45 for 2 x 2.5G LAN |

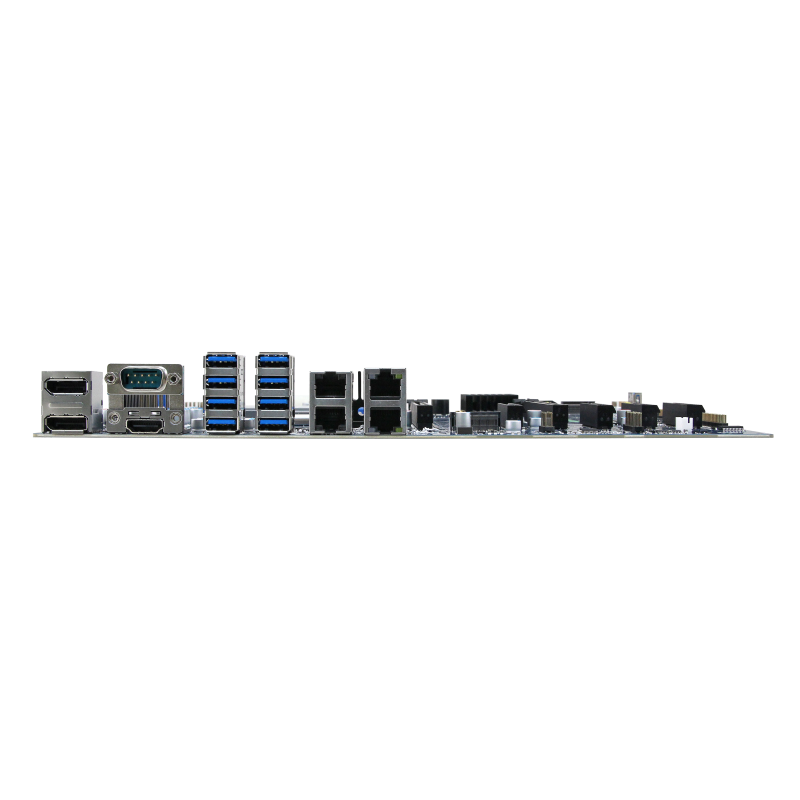

| I/O | 2 x 4-deck USB3.2 connector at I/O for 8 port USB3.2 Gen2, 1 x RS-232 on rear I/O, 2 x RS-232/422/485 by pin header, 3 x RS-232 by pin-header, 1 x USB3.2 Gen1 Vertical Type A, 5 x USB2.0, 1 x 16-bit GPIO |
| Storage | 2 x M.2 Key M NVMe 2242/2280/22110, 4 x SATAIII, RAID 0, 1, 5, 10 |
| Expansion | 2 x PCIex16 slots for 1 x PCIex16 Gen5 (default) or 2 x PCIex8 Gen5. 2 x PCIex4 Gen4, 1 x PCIe x4 Gen3, 1 x PCIex4 slot for 1 x PCIex2 Gen3 only |
| Operative range | 0~55°C (32~131°F) |
| Power | Single power ATX Support S0, S3, S4, S5 |
| Notes | – |
