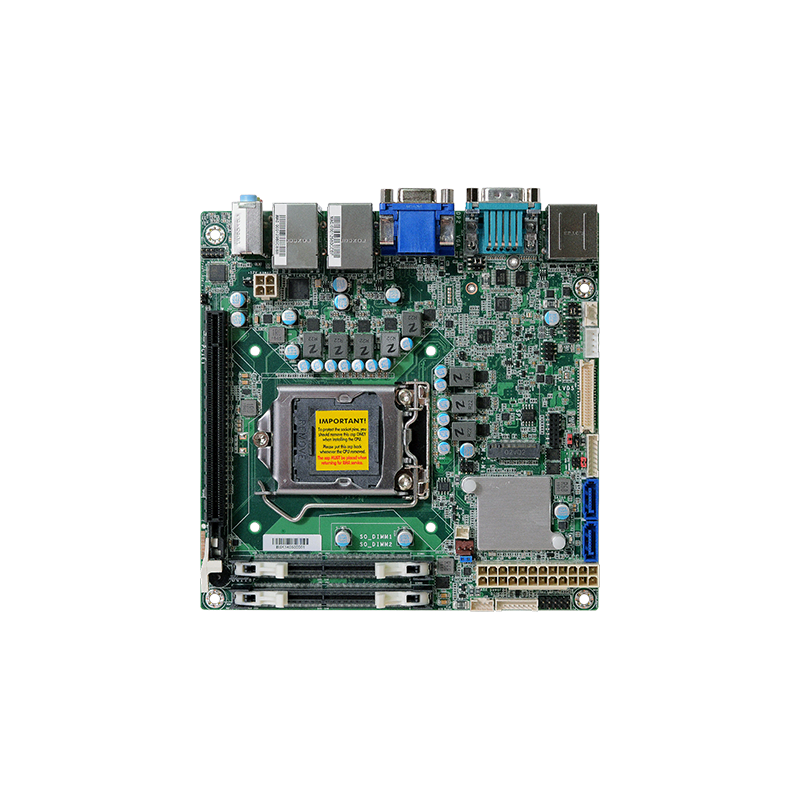

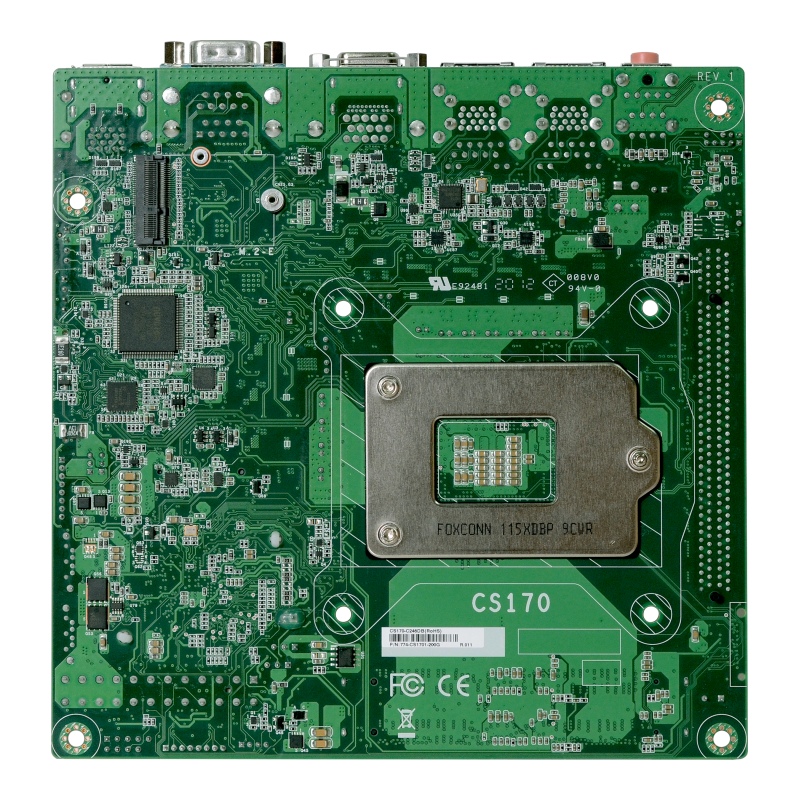

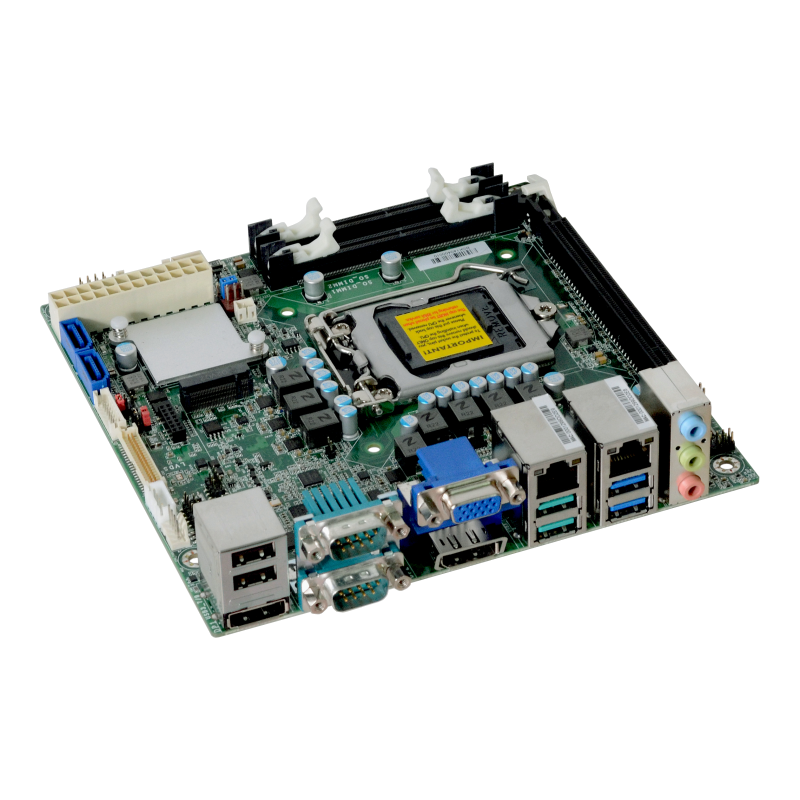

CS170-Q370/C246
Request Information
General Features
| CPU | 8th/9th Generation Intel® Xeon®/Core™ processors |
|---|---|
| Chipset | Intel® Q370/Intel® C246 |
| RAM | Dual Channel DDR4 SO-DIMM 2666 MHz, up to 32 GB |
| LAN | 2 x GigE RJ45 |
| I/O | 2 x USB 3.1 (Gen2), 2 x USB 3.1 (Gen1), 2 x USB 3.0, 4 x USB 2.0, 2 x COM (RS232), 8 x DIO |
| Storage | 2 x SATA3 (6 Gb/s), 1 x M.2 Key M |
| Expansion | 1 x PCIe x16, 1 x M.2 Key E |
| Operative range | -5°C to 65°C |
| Power | ATX |
| Notes | – |
