Caratteristiche generali
| CPU | 10th Generation Intel® LGA 1200 Socket Processors, TDP support up to 125W |
|---|---|
| Chipset | Intel® W480E |
| RAM | Dual Channel DDR4 DIMM 2933 MHz, up to 128 GB |
| LAN | 2 x GigE RJ45 |

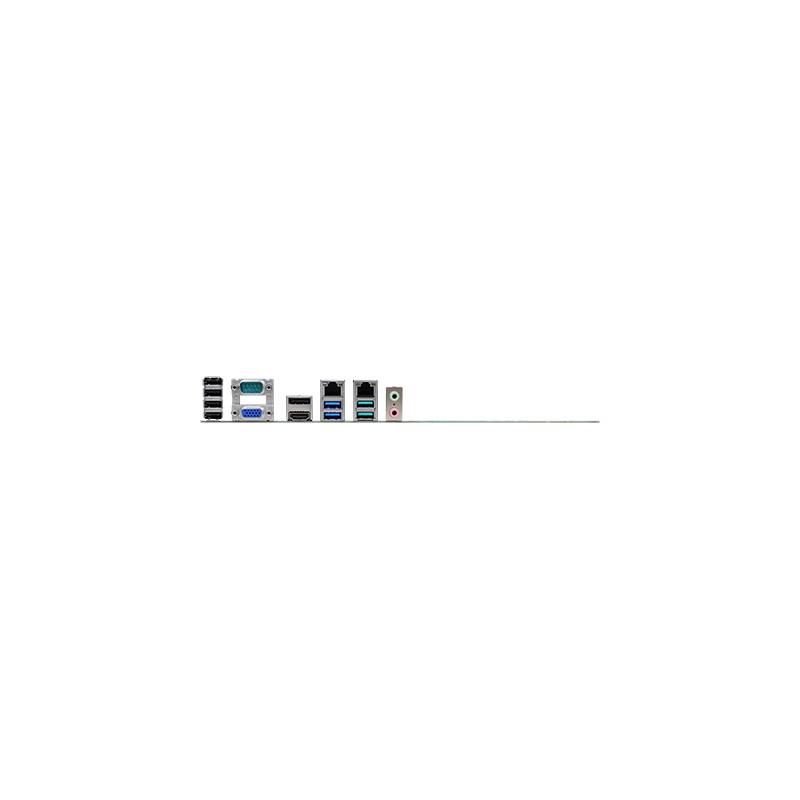

| I/O | 4 x USB 3.2 (Gen2), 2 x USB 3.2 (Gen1), 7 x USB 2.0, 2 x COM (RS232/422/485), 4 X COM (RS232), 16 x GPIO |
| Storage | 4 x SATA3 (6 Gb/s), 2 x M.2 Key M |
| Expansion | 2 x PCIe x16 (mechanical) (1 x 16x or 2 x 8x), 3 x PCIe x4, 2 x PCI, 1 x M.2 Key E |
| Operative range | -5°C to 65°C |
| Power | ATX |
| Notes | – |
