Caratteristiche Tecniche
| CPU | 10th Generation Intel® LGA 1200 Socket Processors, TDP support up to 125W |
|---|---|
| Chipset | Intel® W480E Chipset |
| RAM | Four 288-pin DIMM up to 128GB (ECC/Non-ECC) Dual Channel DDR4 2400/2666/2933 MHz |
| LAN | 1 x Intel® i219LM PCIe (10/100/1000Mbps); 1 x Intel® i210AT PCIe (10/100/1000Mbps) |

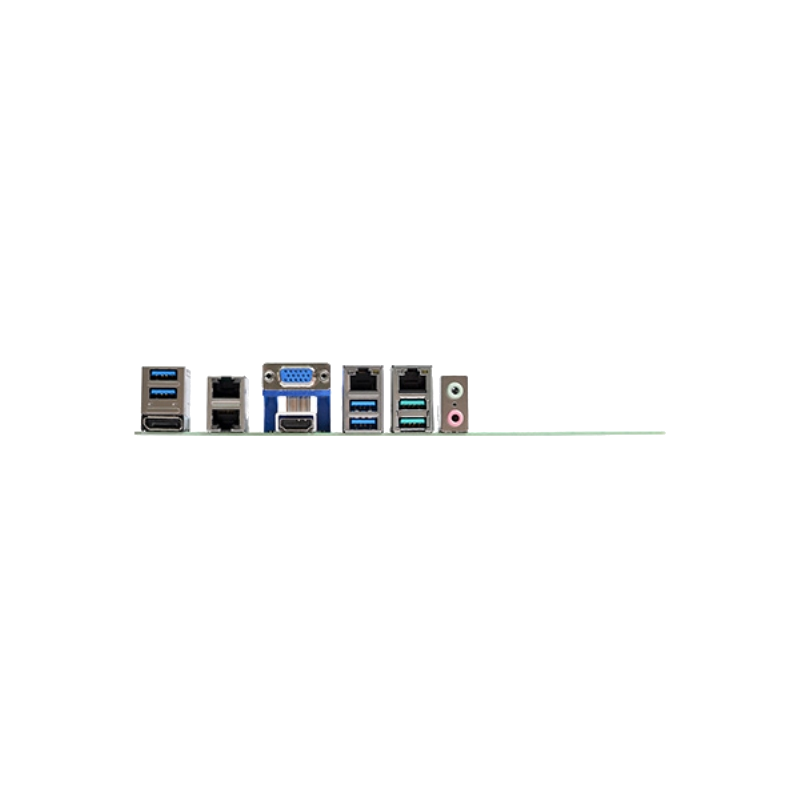

| I/O | 2 x USB 3.2 Gen 2; 4 x USB 3.2 Gen 1; 2 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch); 2 x RS-232; 1 x DP++; 1 x VGA; 1 x HDMI 1.4b; 1 x 16-bit DIO; 1 x SMBus |
| Storage | 4 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10 |
| Expansion | 2 x PCIe x16 (Gen 3) (1 x16 signals or 2 x8 signals); 2 x PCIe x4 (Gen 3); 1 x M.2 2230 E Key (PCIe/USB 2.0/Intel CNVi support); 1 x M.2 2242/2260/2280 M Key (PCIe x4 Gen3 NVMe/SATA/Intel Optane Memory support) |
| Operative range | -5° to +65° C |
| Power | ATX |
| Notes | Certifications: CE, FCC, RoHS, UKCA, UL |
