Caratteristiche Tecniche
| CPU | 12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W |
|---|---|
| Chipset | Intel® R680E/Q670E/H610E Chipset |
| RAM | Dual Channel DDR4 3200 MHz (ECC support: R680E only), Two 260-pin SODIMM up to 64GB |
| LAN | 1 x Intel® I225LM PCIe (10/100/1000/2.5G), 1 x Intel® I219LM PHY (10/100/1000), opzionale 1 x Intel® I210AT PCIe(10/100/1000) |

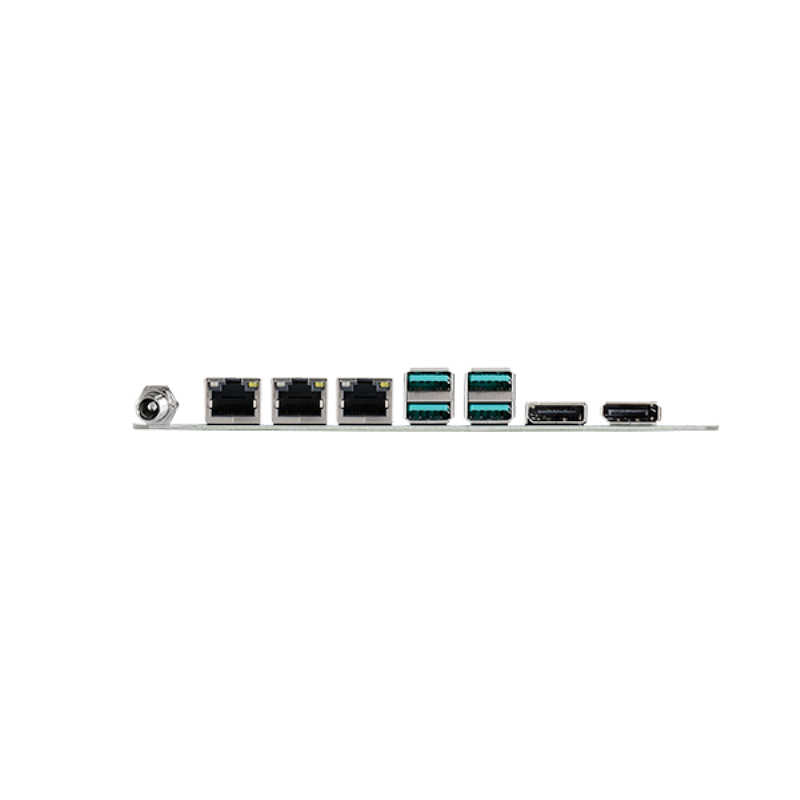

| I/O | R680E/Q670E: 4 x USB 3.2 Gen2 (optionale to 6 x USB 3.2 Gen2), H610E: 2 x USB 3.2 Gen2 + 1 x USB 3.2 Gen1, 1 x DP++, 1 x DP++/HDMI, optional 1 x estensione display DFI per (DP/HDMI/VGA), 2 x RS-232/422/485, 1 x 8-bit DIO |
| Storage | 2 x M.2 2242/3042/ Chiave 3052 B |
| Expansion | 1 x PCIe x16 (Gen 5), 1 x M.2 2230 E Key (USB/PCIe x1), R680E/Q670E: 1 x M.2 2280 M Key (PCIe Gen4 x4/SATA), 1 x M.2 2242/3042/3052 B Key (PCIe Gen3 x1/SATA/USB 3.2 Gen2/USB 2.0), H610E: 1 chiave M.2 2280 M (PCIe Gen3 x1/SATA), 1 x M.2 2242/3042/3052 B Key (SATA/USB 3.2 Gen1/USB 2.0) |
| Operative range | -5° +65° C |
| Power | Wide Range 15~36V |
| Notes | CE, FCC Classe B, RoHS |
