Caratteristiche Tecniche
| CPU | Intel® Atom® Alder Lake-N Processors |
|---|---|
| Chipset | – |
| RAM | One 262-pin SODIMM up to 16GB Single Channel DDR5 4800MHz |
| LAN | 3 x Intel® I226V/IT(10/100/1000/2500Mbps) |

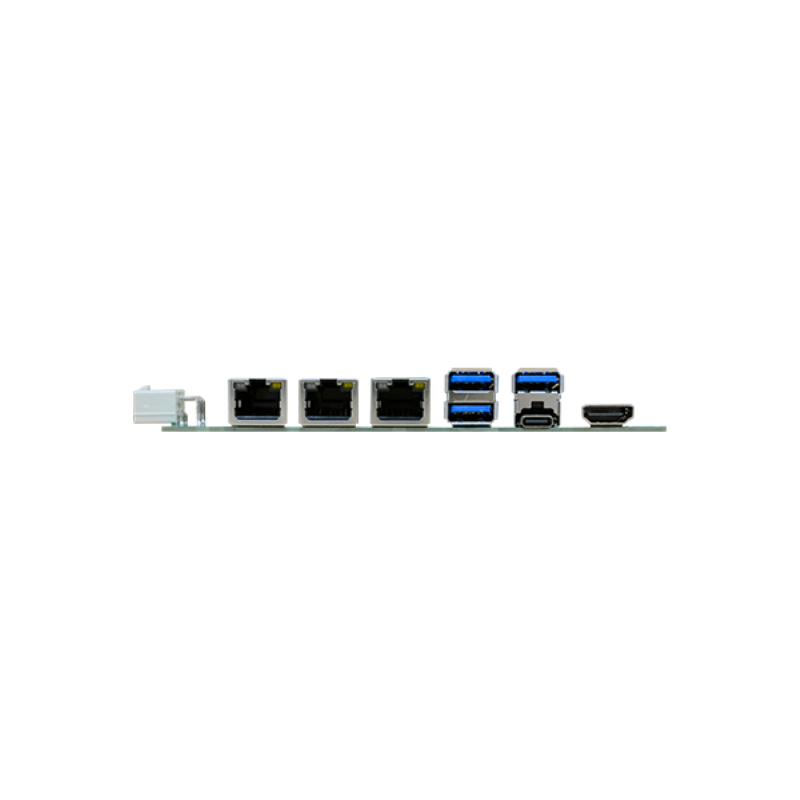

| I/O | 4 x USB 3.2, 2xUSB 2.0, 1 x HDMI, 1 x Type-C DP Alt. Mode, 1 x LVDS/eDP, 1 x RS-232/422/485 |
| Storage | 2 x SATA 3.0 (up to 6Gb/s) |
| Expansion | 1 x M.2 M key 2280/2242 (PCIe Gen3 x1/SATA3.0), 1 x M.2 B key 3052/3042 (USB3.0/USB2.0, optional PCIe x1), 1 x SIM slot for 4G/5G, 1 x M.2 E key 2230 (USB/PCIe x1, support CNVi) |
| Operative range | -5° to 65° C |
| Power | Wide Range 9~36V DC |
| Notes | CE, FCC Class B, RoHS |
