Caratteristiche Tecniche
| CPU |
Core i5-8365UE(Quad Core, 6 MB cache, 1.6GHz) Core i3-8145UE(Dual Core, 4 MB cache, 2.2GHz) |
|---|---|
| Chipset | Intel SoC |
| RAM | 1 x 260-pin SO-DIMM up to 32GB DDR4 3200MHz |
| LAN | 1 x M12 8-pin for LAN with waterproof cover |
| I/O |
1 x M12 8-pin for USB 2.0 with waterproof cover; 1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover; 1 x Touch on/off button at the side |
| Storage | 1 x 2.5″ SATA3 HDD (for option); 1 x M.2 M-Key(PCIe x4/ SATA3 Auto Detect), Support 2242 at Default |
| Expansion | 1 x Mini-PCIe slot for 4G/5G , WiFi/BT module; 1 x NANO-SIM |

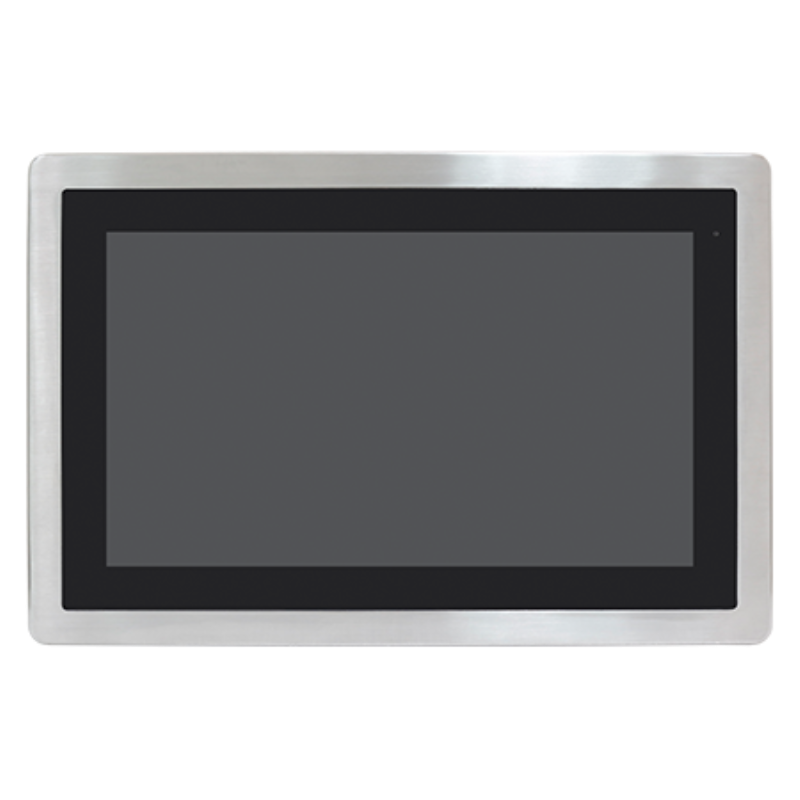

| Display Size and Form Factor | 15.6″ TFT-LCD |
| Resolution | 1366 x 768 px |
| Brightness | 400 cd/m2 |
| Touch |
Resistive Touch (For BR model) Projected Capacitive Touch (For BP model) |

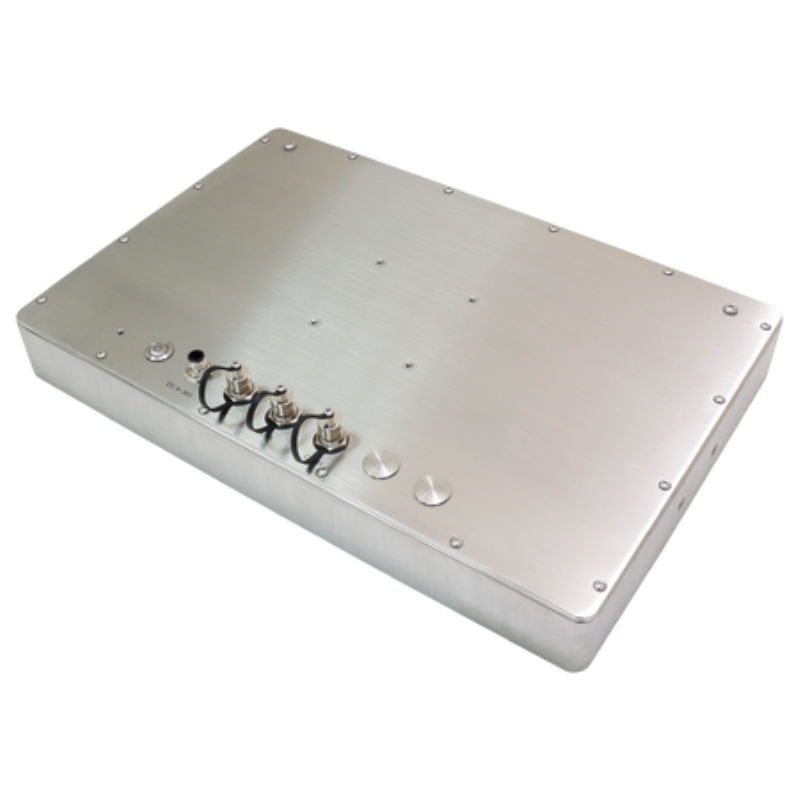

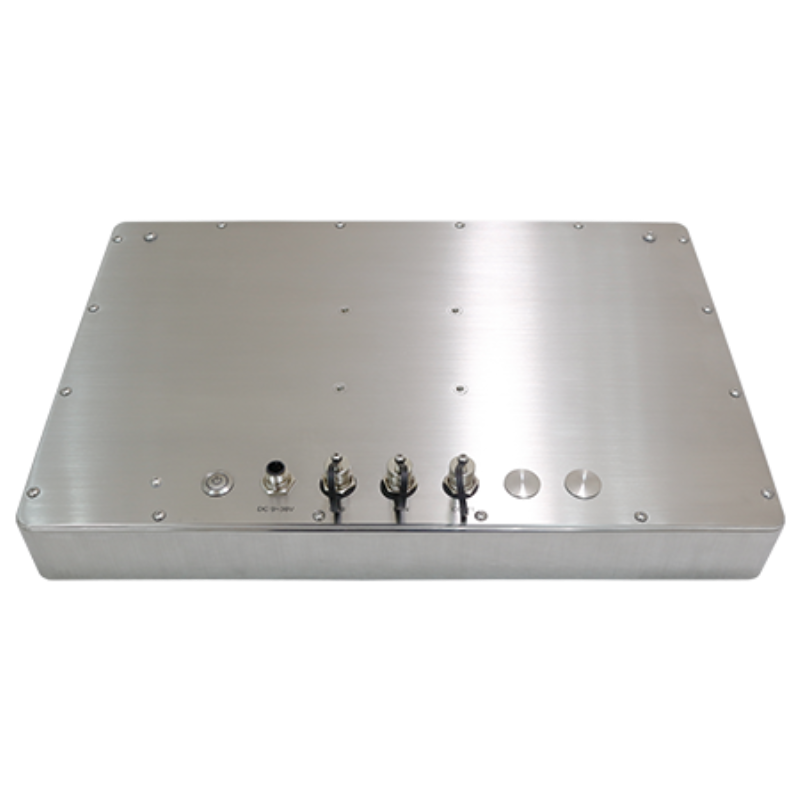

| Mechanicals | 304 Stainless steel chassis(default), 316 Stainless steel chassis(optional); VESA mount 75 x 75, Yoke mount for optional |
| Operating Temperature | 0°÷50°C / -20°÷60°C (option) |
| Power | 9-36V DC |
| Notes | CE/FCC Class A |
