Caratteristiche Tecniche
| CPU | Onboard Intel Celeron J6412(2.0 GHz) Processor |
|---|---|
| Chipset | Intel SoC |
| RAM | 1 x 260-pin SO-DIMM up to 32GB DDR4 3200MHz |

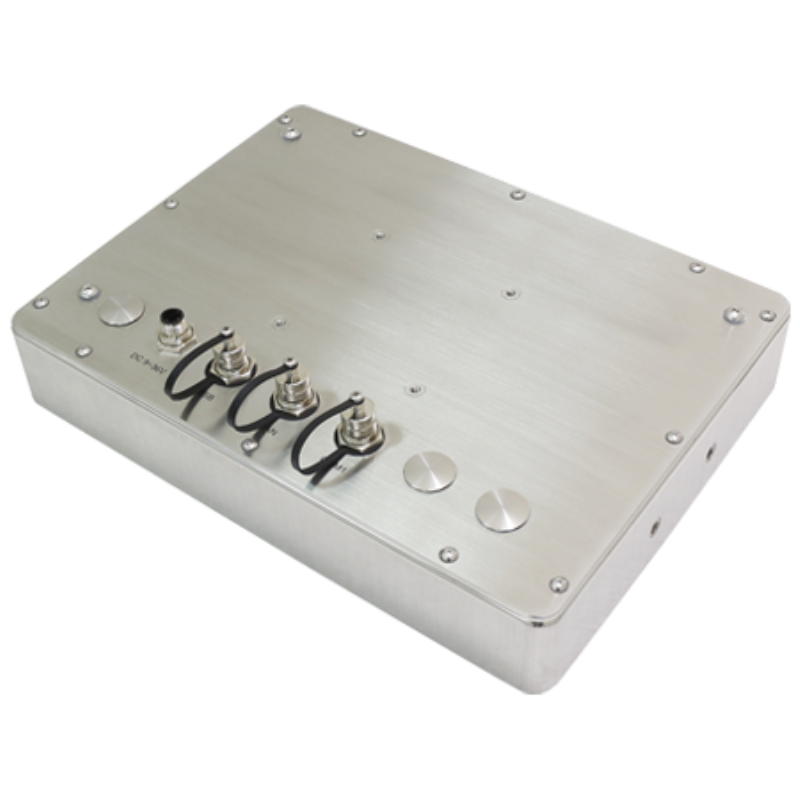

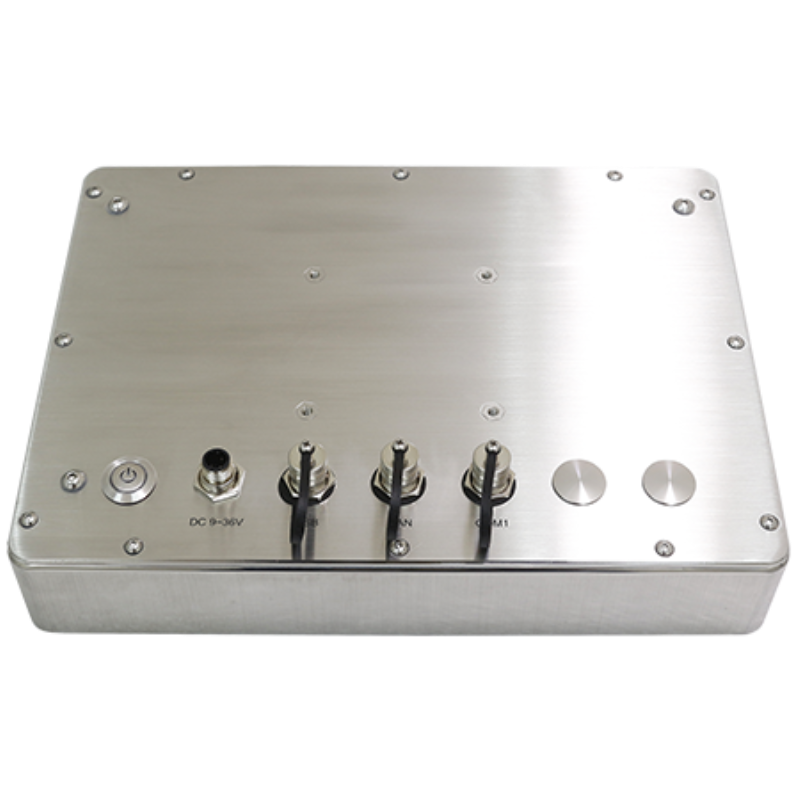

| LAN | 1 x M12 8-pin for LAN with waterproof cover |
| I/O |
1 x M12 8-pin for USB 2.0 with waterproof cover; 1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover; 1 x Touch on/off button at the side |
| Storage | 1 x M.2 B-Key(SATA 3), Support 2242 at default |
| Expansion | 1 x Mini-PCIe slot for 4G/5G module; 1 x M.2 E-Key 2230 for WiFi/BT module; 1 x Nano SIM slot |

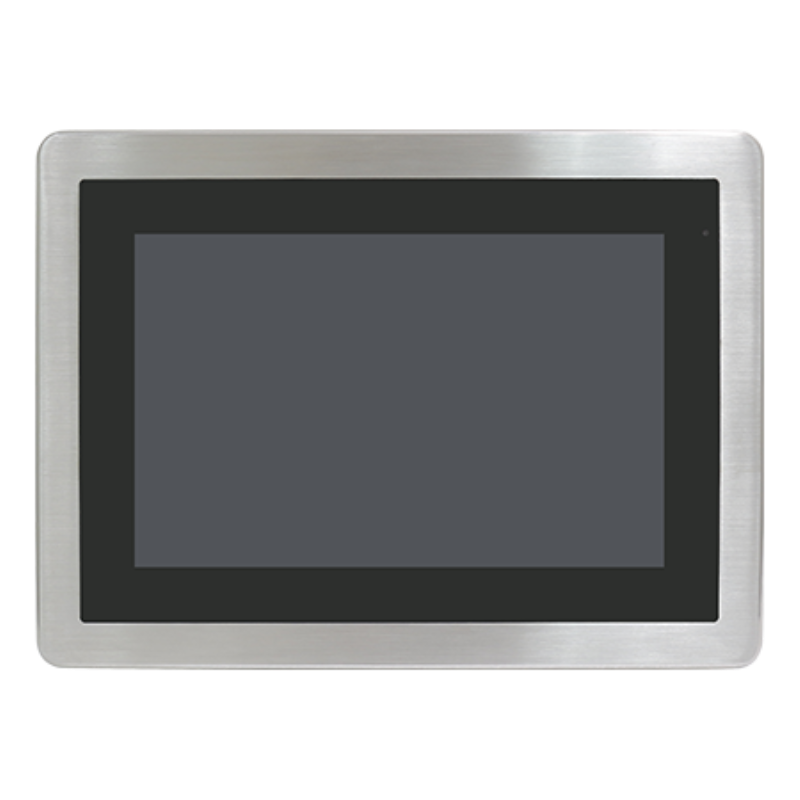

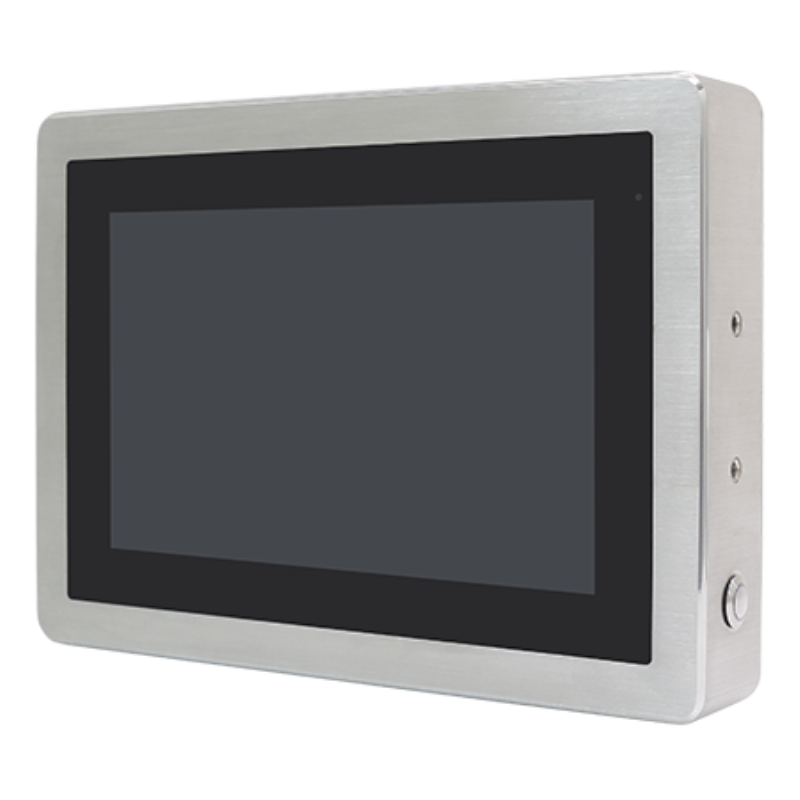

| Display Size and Form Factor | 10.1″ TFT-LCD |
| Resolution | 1280 x 800 px |
| Brightness | 350 cd/m2 |
| Touch |
Resistive Touch (For BR model) Projected Capacitive Touch (For BP model) |
| Mechanicals | 304 Stainless steel chassis(default), 316 Stainless steel chassis(optional); VESA mount 75 x 75, Yoke mount for optional |
| Operating Temperature | 0°÷50°C / -20°÷60°C (option) |
| Power | 9-36V DC |
| Notes | CE/FCC Class A |
