Caratteristiche Tecniche
| CPU | Intel Elkhart Lake Celeron J6412, Quad-core 2.0Ghz, burst to 2.6Ghz, TDP 10W |
|---|---|
| Chipset | – |
| RAM | SO-DIMM, Support DDR4 2666/2933/3200 MHz, Max. up to 32GB |
| LAN | 2* RJ45, 10/100/1000 Mbps |

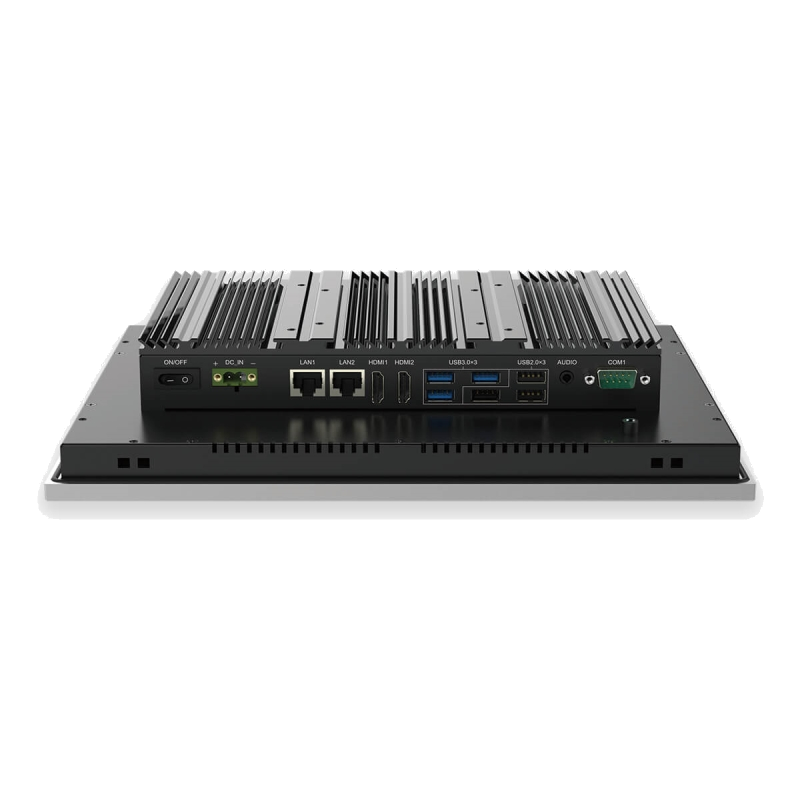

| I/O | 3*USB3.0, 3*USB2.0, 1*COM (DB9), 2*HDMI, Audio; |
| Storage | 1* M.2 2280 (NVMe PCIe 2.0) |
| Expansion | 1* M.2 Key-B slot, 1* Mini-PCIe slot |

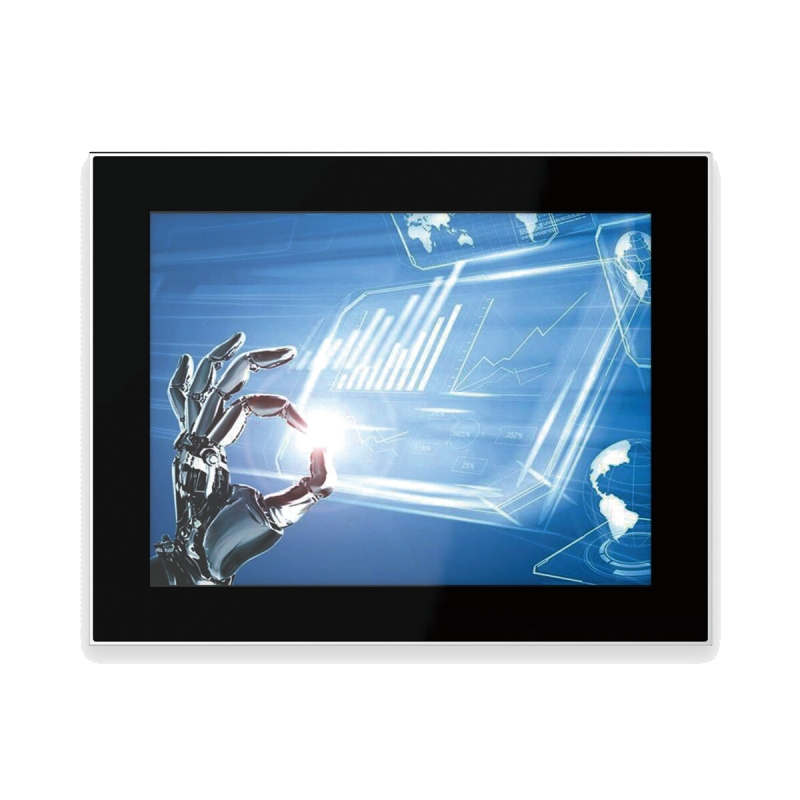

| Display Size and Form Factor | 10.4”, – |
| Resolution | 1024 * 768 (XGA) |
| Brightness | 350 cd/m2 |
| Touch | PCAP |
| Mechanicals | IP65 Front Panel,VESA Mount, Panel Mount |
| Operating Temperature | 20～+70°C |
| Power | DC 12V (Optional DC 9~36V) |
| Notes | CE/FCC Class A |
