Caratteristiche Tecniche
CPU 11th Gen. Intel Core i3/i5 Processor
Chipset
RAM 2 x 260Pin SO-DIMM DDR4 slot, up to 64GB 3200MHz
LAN 2 x GbE LAN RJ-45

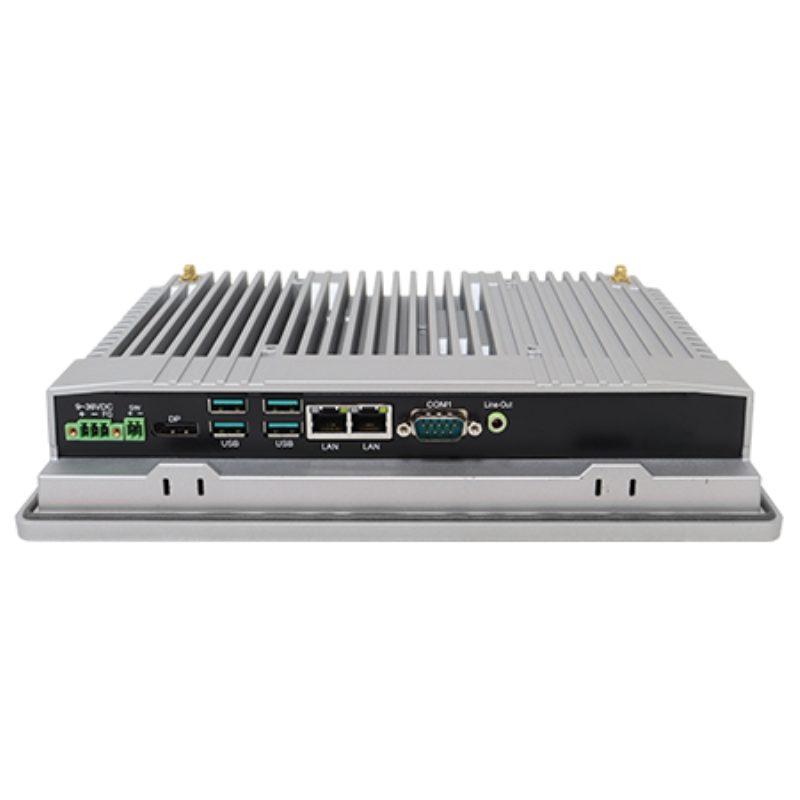

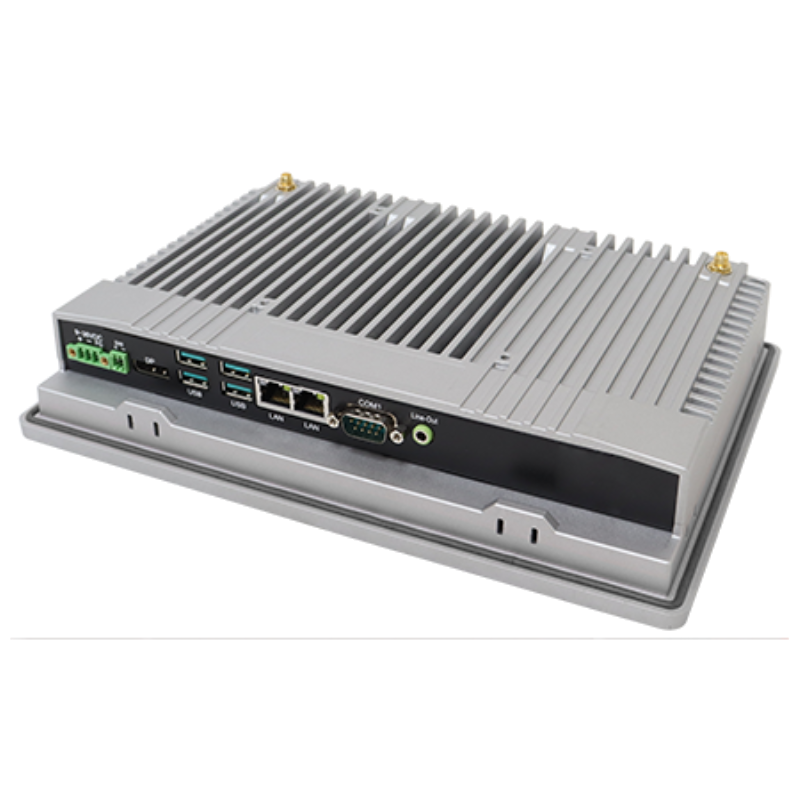

I/O 4 x USB 3.0 type A, 1 x DB-9 connector, including:
* 1 x RS-232(RTS, Rx, Tx, CTS), pin1 RTS/5V/12V selectable via jumper (COM1)
* 1 x RS-232(Tx, Rx)/422/485(COM2) by Y Cable
Storage 1 x M.2 M-Key 2280 (Support PCIe/SATA3)
Expansion 1 x Mini-PCIe slot (full size), 1 x M.2 E key for Wifi/BT Module, 1 x Nano SIM slot
Display Size and Form Factor 10.1″, –
Resolution 1280 x 800 px
Brightness 350 cd/m2
Touch PCAP
Mechanicals IP66 compliant front bezel ,VESA 100×100, Panel Mount
Operating Temperature 0~50˚C / -20~60˚C (option)
Power DC 9~36V
Notes CE/FCC, Class A
