Caratteristiche Tecniche
CPU |
Onboard 8th Gen Intel Core i3-8145UE Processor (2C/4T,2.2GHz) Intel Core i5-8365UE Processor (4C/8T,1.6GHz) |
---|---|
Chipset | Intel SoC |
RAM | 1 x 260-pin SO-DIMM up to 32GB DDR4 2400MHz |
LAN | 2 x GbE LAN RJ-45 |

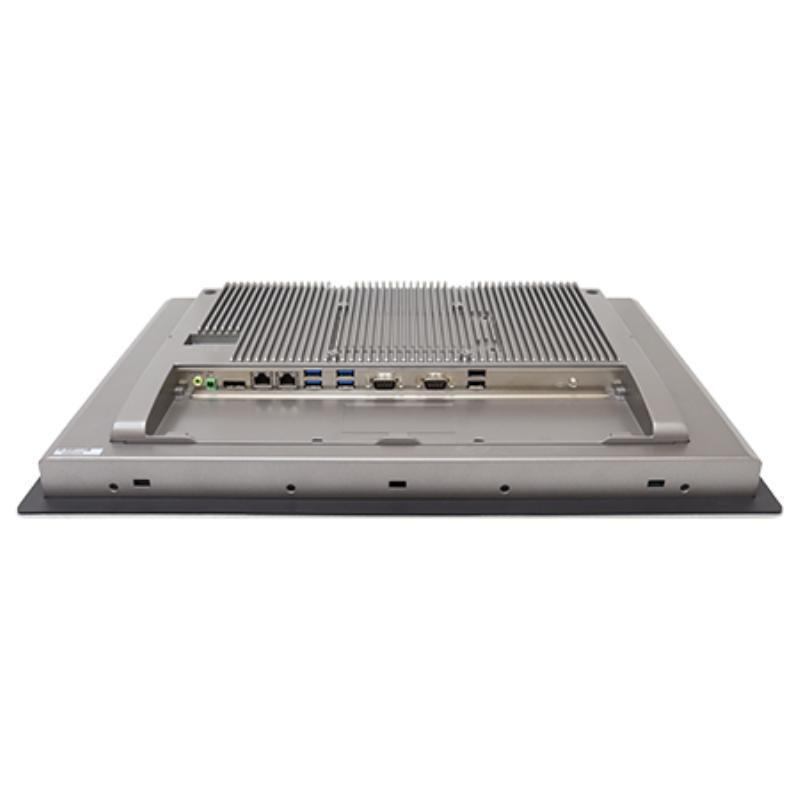

I/O | 4 x USB 3.0 type A; 1 x RS-232(RTS, Rx, Tx, CTS), pin1 RTS/5V/12V selectable via jumper (COM1); 1 x RS-232(Tx,Rx)/422/485(COM2) by Y Cable; 1 x DP |
Storage | 1 x M.2 M-Key slot (Support PCIe/SATA3; 2242/2280, Default 2242) |
Expansion | 1 x Mini-PCIe slot (full size), 1 x Nano SIM Card Holder |

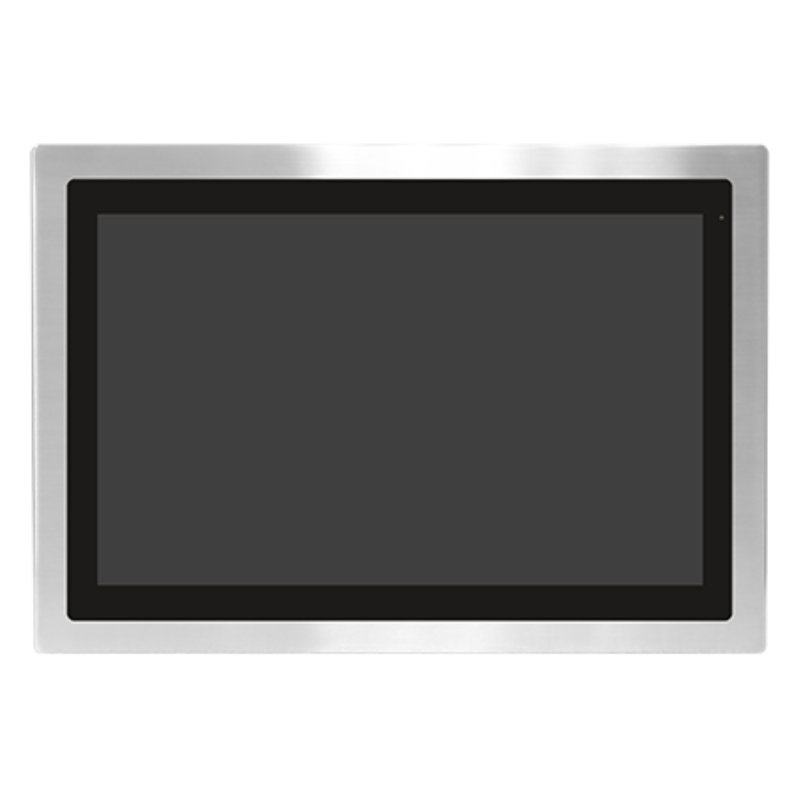

Display Size and Form Factor | 18.5″ TFT-LCD |
Resolution | 1366 x 768 px |
Brightness | 300 cd/m2 |
Touch |
Projected Capacitive Touch (for BP model) Resistive Touch (for BR model |
Mechanicals | SUS304 Stainless Steel Front Bezel (default); SUS316L Stainless Steel Front Bezel (for option); Aluminum Die-casting Back Cover; Panel Mount, VESA Mount 100 x 100; IP66/IP69K Compliant Front Bezel |
Operating Temperature | 0°÷50˚C/ -20°÷60°C (option) |
Power | DC 9÷36V |
Notes | CE/FCC Class A / EN 1672-2 Compliant for P Model (optional) |
