Caratteristiche Tecniche
CPU Freescale i.MX6 Dual Lite, ARM Cortex A9(2x Cores,1.0GHz)
Chipset
RAM Onboard 1GB DDR3 DRAM
LAN 1 x GbE LAN RJ-45

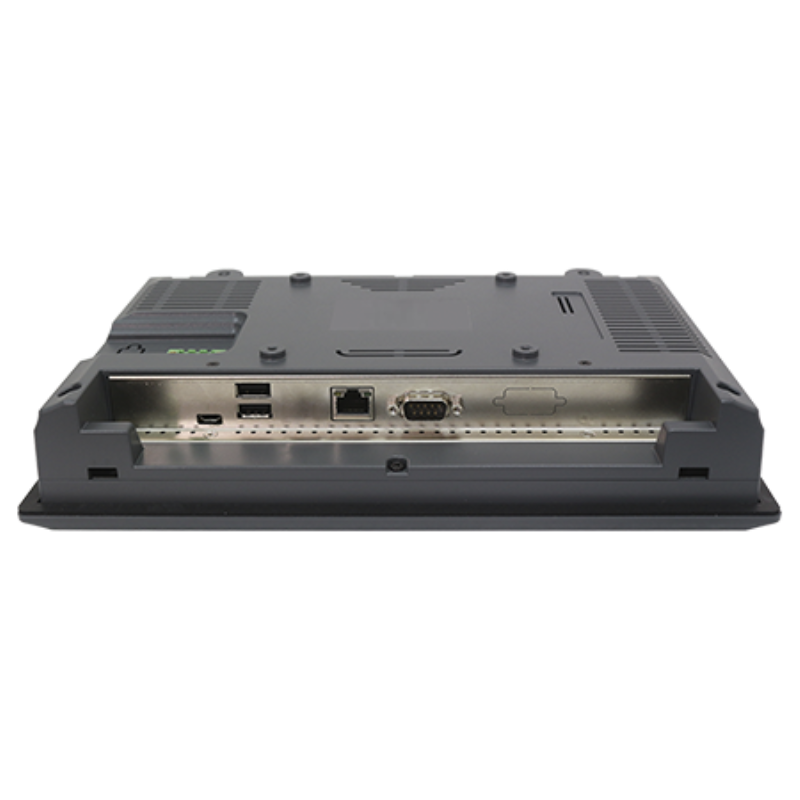

I/O 2 x USB 2.0 type A; 1 x USB 2.0 (Micro B Type) Serial / Parallel; 1 x RS-232/422/485 DB9, default RS-232
Storage Onboard 4GB eMMC NAND Flash
Expansion 1 x mini-PCIe slot(full size); 1 x Sim Card slot

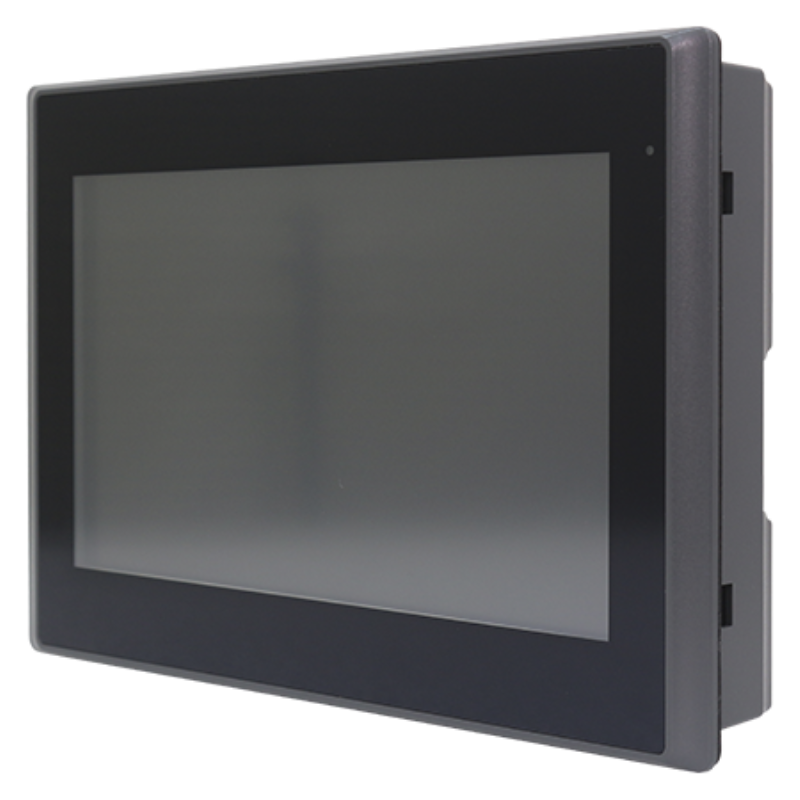

Display Size and Form Factor 10.1″ TFT-LCD
Resolution 1024 x 600 px
Brightness 250 cd/m2
Touch Resistive Touch (for R Model)
Projected Capacitive Touch (for P Model)
Glass (for G model)

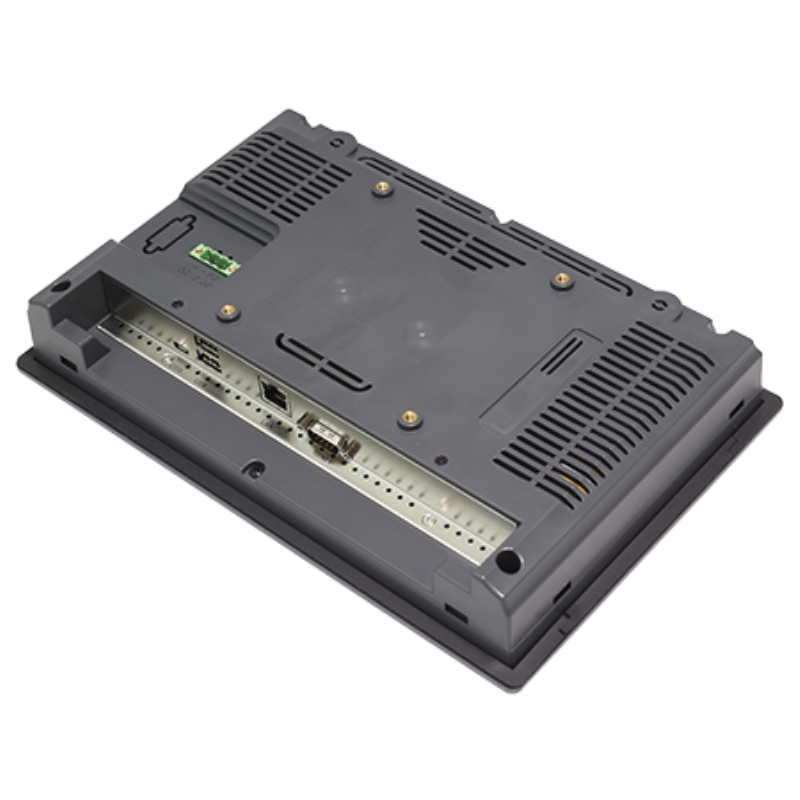

Mechanicals IP65 compliant front bezel; Plastic front bezel and Chassis; VESA Mount 100×100; Panel Mount
Operating Temperature 0°÷50°C -20°÷60°C (option)
Power DC 9÷36V
Notes CE/FCC Class A
