Caratteristiche Tecniche
| CPU | NXP i.MX8M Plus Quad, 4 x Cortex-A53 up to 1.6GHz |
|---|---|
| Chipset | – |
| RAM | Onboard 4GB LPDDR4 SDRAM |
| LAN | 2 x GbE LAN, *LAN1 Support PoE (optional) |

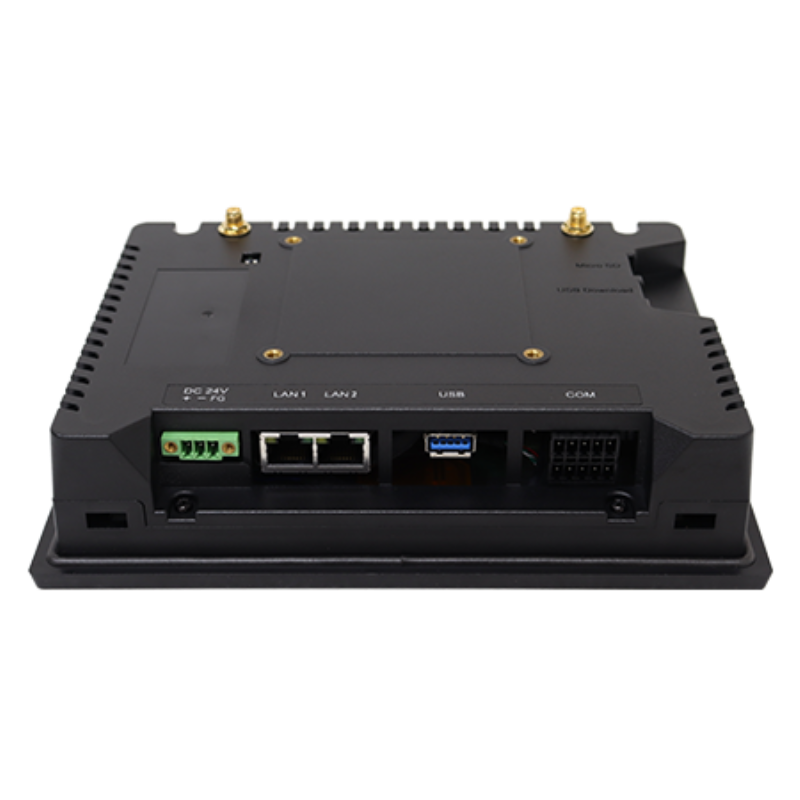

| I/O | 1 x USB 3.0/ USB2.0, via Vertical USB type A port; 1 x USB Download Mode via Micro USB port; 1 x Pitch 3.5 mm 2 x 5-pin Terminal Block with; 1 x RS-232(RX,TX,RTS,CTS)/ 2W RS-485(D+,D-), select via jumper; 1 x 2W RS-485(D+,D-); 1 x CAN bus 2.0b (CAN_H,CAN_L) |
| Storage | Onboard 16GB eMMC Flash |
| Expansion | |
| Display Size and Form Factor | 7″ TFT-LCD |
| Resolution | 800 x 480 px |
| Brightness | 400 cd/m2 |
| Touch | PCAP |
| Mechanicals | IP65 compliant front bezel; Engineering Plastic; VESA Mount 75×75; Panel Mount |
| Operating Temperature | 0°÷50°C -20°÷60°C (option) |
| Power | DC 24V |
| Notes | CE/FCC Class A, UKCA, RoHS 2.0/ REACH |
