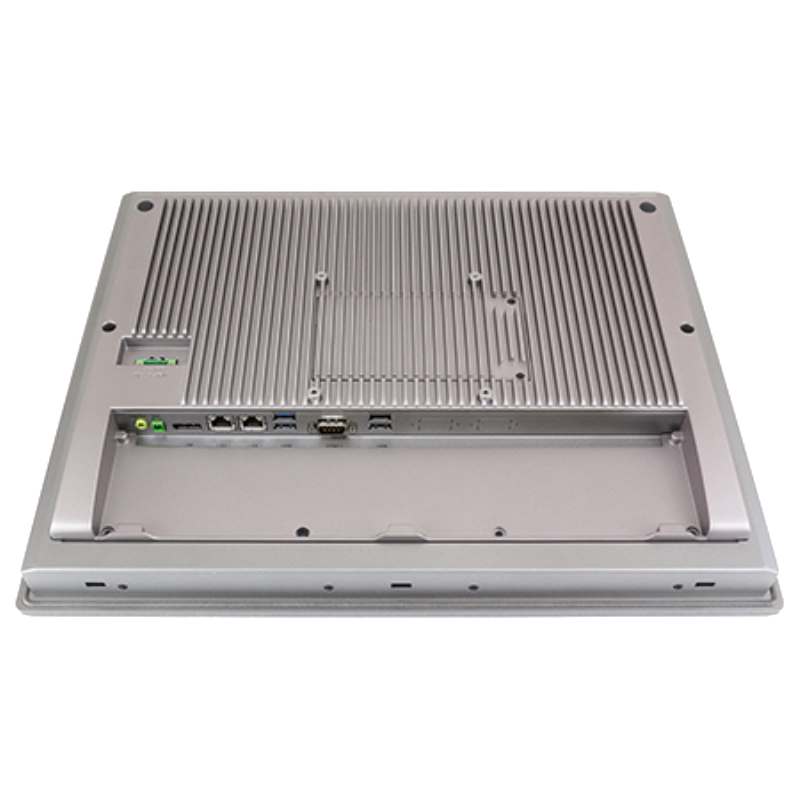

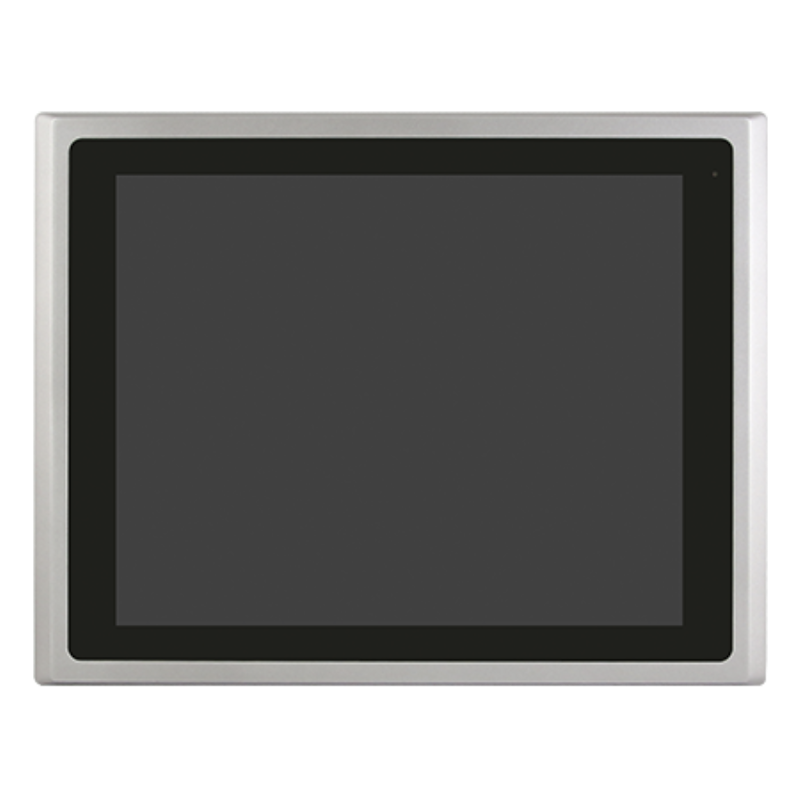

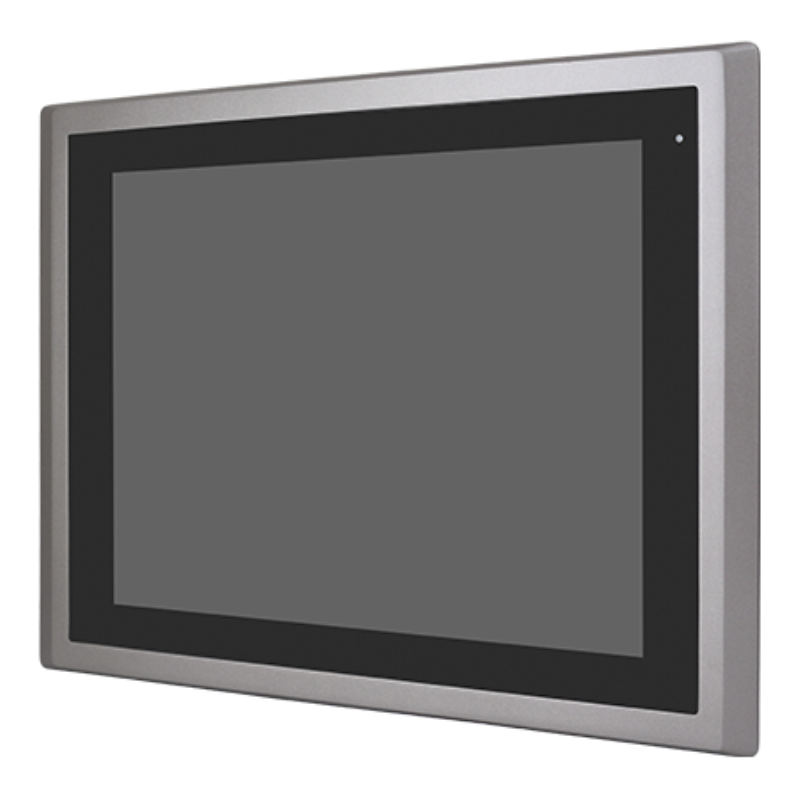

ARCHMI-817BP/R(H)
Richiedi informazioni
Caratteristiche Tecniche
| CPU | Intel Elkhart Lake Celeron J6412, Quad-core 2.0Ghz, burst to 2.6Ghz, TDP 10W |
|---|---|
| Chipset | – |
| RAM | 1 x SO-DIMM, Support DDR4 2666/2933/3200 MHz, Max. up to 32GB |
| LAN | 2 x RJ45 10/100/1000 Mbps |
| I/O | USB 2 x USB 3.2 Gen2 type A ; 2 x USB 2.0 type A ; 1 x RS-232/422/485 |
| Storage | 1 x M.2 B-Key slot |
| Expansion | 1 x Mini-PCIe slot (full size) ; 1 x M.2 E-Key |
| Display Size and Form Factor | 17″ TFT-LCD, 16:9 |
| Resolution | 1280 x 1024 px |
| Brightness | 350 cd/m2 |
| Touch | PCAP |
| Mechanicals | IP66 Front Panel,VESA Mount, Panel Mount |
| Operating Temperature | 0°C to 50°C / -20°C to 60°C (Option) |
| Power | 9-36V DC-in |
| Notes | CE/FCC Class A |
