Caratteristiche Tecniche
| CPU | Intel 11th Gen. (Tiger Lake-UP3) Processors |
|---|---|
| Chipset | Intel SoC |
| RAM | 2 x DDR4-3200MHz SO-DIMM slot, up to 64GB |
| LAN |
1 x Intel i219LM, RJ45 GbE LAN; 1 x Intel i225LM, RJ45 2.5GbE LAN |

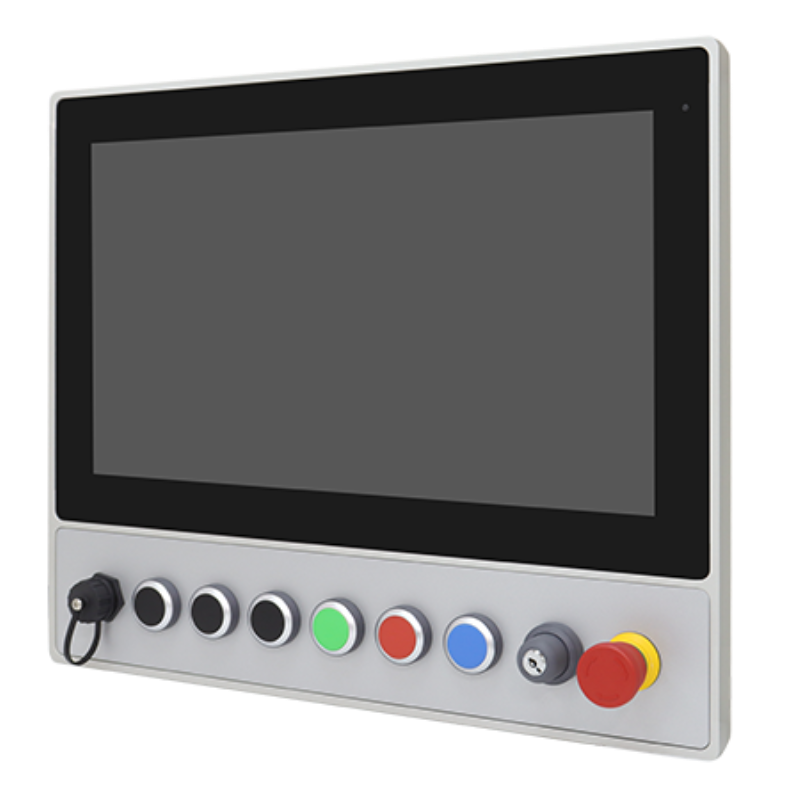

| I/O | 1 x USB 2.0 Type-A; 4 x USB 3.2 Gen 2 Type-A; 1 x USB 3.2 Gen 2 Type-C; 1 x COM1 (RS-232/422/485); 1 x COM2 (RS-232/422/485, supports 5V/12V/RI)(optional); 2 x DP 1.4a; 1 x HDMI 2.0b; 1 x Emergency Button (default); Default: 1 x BLUE (reset) / 1 x RED (stop) / 1 x GREEN (start); Optional: 3 x BLACK (self-defined) / 1 x Key Switch |
| Storage | 1 x M.2 2280 M-key (PCIe x4) slot for PCIe/NVMe SSD |
| Expansion | 1 x Full size mSATA/mPCIe slot (mPCIe as default, select by BIOS ); 1 x M.2 2230 E-key slot for Wi-Fi/BT Module; 1 x Nano SIM card |
| Display Size and Form Factor | 15,6″ TFT-LCD |
| Resolution | 1920 x 1080 px |
| Brightness | 500 cd/m2; High Brightness 1000 cd/m2 Optional |
| Touch | PCAP |

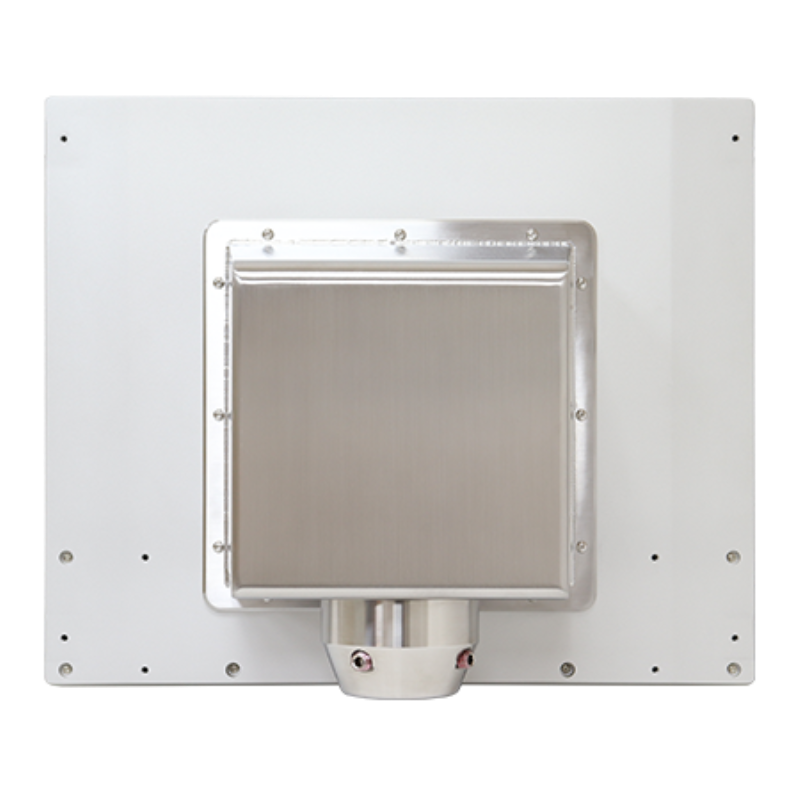

| Mechanicals | Front Bezel: Aluminum CNC; Rear Housing: Stainless 316L; Swing Arm support Rittal CP-40; Full IP65 |
| Operating Temperature | 0°C ÷ 50°C |
| Power | DC 9 ÷ 36V |
| Notes | CE/FCC Class A / UKCA |
