ART-710
Tags: Alder Lake N, DDR5
Intel Celeron N50/N200 Processor, Dual Battery with Hot Swappable Design, Onboard 8GB/16GB LPDDR5, Total IP65 Design, Wide Ranged Operating Temperature & Light Weight Design
Download Datasheet ART-710
Request Information
General Features
Intel Celeron N50/N200 Processor

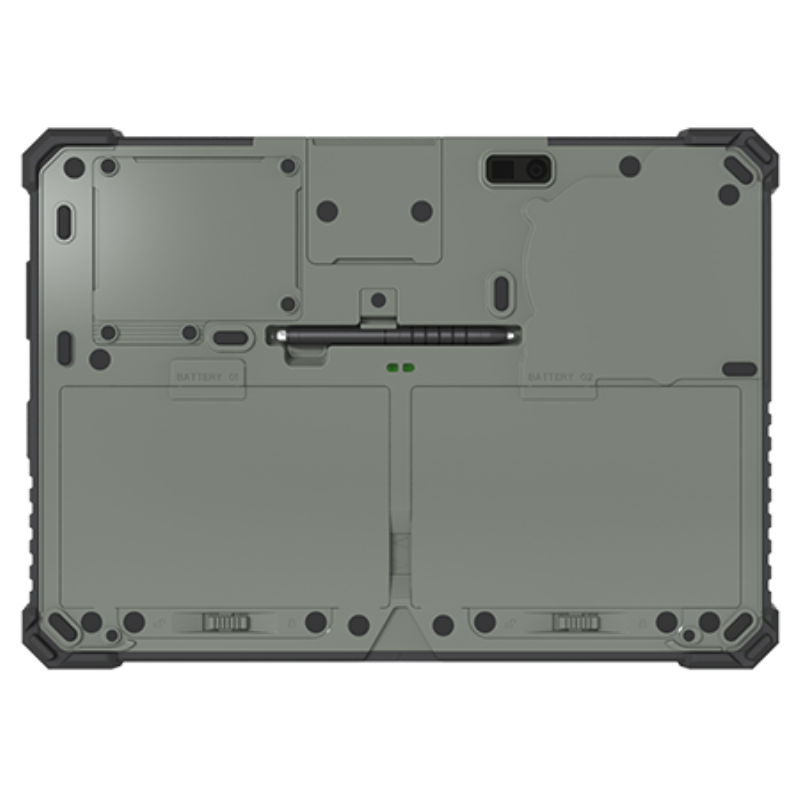

Dual Battery with Hot Swappable Design
Onboard 8GB/16GB LPDDR5
Total IP65 Design
1 USB 3.0 type A
1 USB type C
Technical Features
| CPU | Intel Alder Lake-N Processor N50; Intel Alder Lake-N Processor N200 | System Chipset | Intel ® SoC |
| Memory | Onboard LPDDR5 8GB(default)/16GB(option) |
| Storage | 1 x M.2 Nvme SSD (128GB for default, support up to 1TB) |

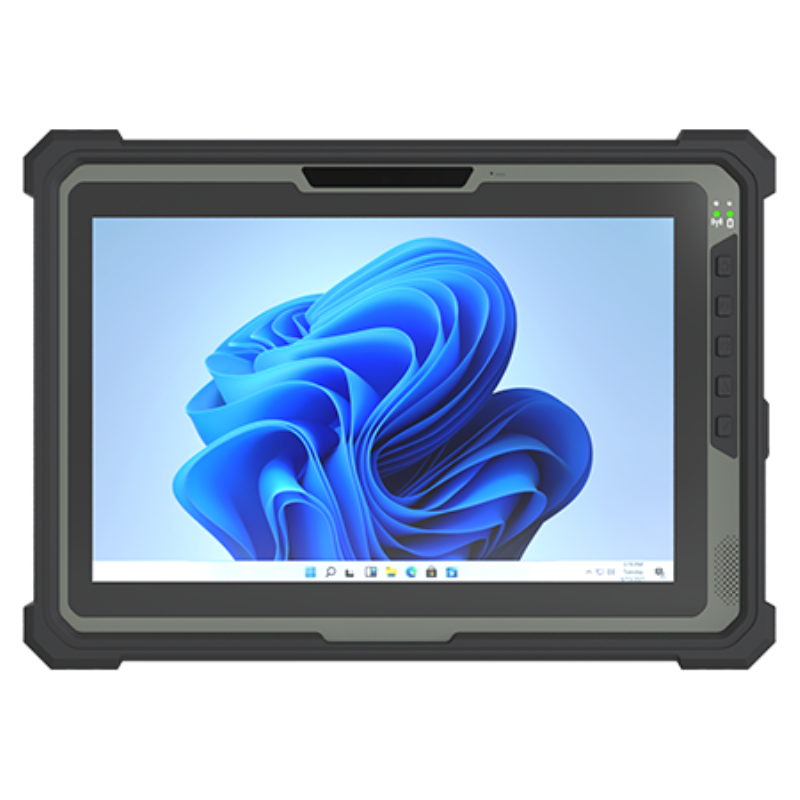

| Display | 10.1″ TFT-LCD |
| Max resolution 1920 x 1200 | |
| 500 nits | |
| Touch screen | Projected Capacitive, with Anti-Fingerprint and Corning Gorilla Glass (Support Finger/ Stylus/ Glove/ Raindrop) |
| RF | WLAN 802.11 a/b/g/n/ac/ax (Wi-Fi 6E) + Bluetooth 5.3; GNSS GPS, GLONASS (option); WWAN 4G LTE or 5G (option) |
| Data Collection | 2 MP front camera (Front camera can have Windows hello camera for option) |
| 8 MP auto-focus rear camera with flash light | |
| Control Button | 6 x Buttons (Windows, power, function key 1, function key 2, volume up, volume down) (programmable) |
| I/O Interface | 1 x USB 3.0 Type A; 1 x USB Type-C (with display port & power delivery); 1 x Audio jack (line-out/mic-in combo); 1 x 2W speaker; 1 x Mic; 1 x USB Type-C (with display port & power delivery); 1 x Dual-Nano SIM slot for 4G LTE |
| Battery | 2 x 11.1 V/ 2100 mAh hot-swappable Li-Ion battery |
| Power | DC 19V Input via DC Jack or USB Type-C power delivery 20V |
| Dimensions and Weight | 274 x 195 x 22 mm (without 4-corner rubber) |
| 1.08 kg (tablet only) | |
| Certification | CE/FCC Class B |
| Operating System | Windows 10 IoT Enterprise 2021 LTSC / Windows 11 IoT Enterprise |
| Rugged Feature | Magnesium Aluminum Alloy; Total IP65 |
| Environment | Operating temperature -10°C ÷ +50°C |
| Storage temperature -20°C ÷ +60°C | |
| Humidity 10 ÷ 95% @ 40°C, Non- condensing | |
| In-box Accessory | Stylus; Hand strap; Vibrator; Ambient Light Sensor; Hand strap (option); 360° rotatable hand strap (option); Shoulder strap (option); 9H screen protector (option) |
