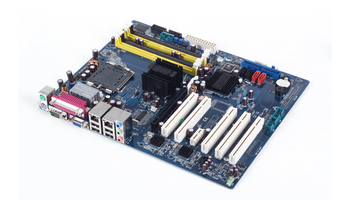

ATX
The most common form factor for consumer motherboards, because of rear panel I/O completeness and variety of expansion slots offered.
| Model | LAN | USB 2.0 | USB 3.0 | USB 3.1 | USB 3.2 | M.2 | COM | PCI | PCIe | Mini PCIe | Power | DM | ||
|
RPS631-H610E
|
2 | 2 | - | - | 4 | 1 | 2 | 4 | 3 | - | ATX | |||
|
RPS631-H310
|
2 | 2 | - | - | 4 | 1 | 2 | 4 | 3 | - | ATX | |||
|
RPS630-R680E/Q670E
|
4 | 3 | - | 6 | 4 | 3 | 6 | 1 | 6 | - | ATX | |||
|
BC680R
|
2 | - | - | - | 6 | 3 | - | - | 7 | - | ATX |
| Model | LAN | USB 2.0 | USB 3.0 | USB 3.1 | USB 3.2 | M.2 | COM | PCI | PCIe | Mini PCIe | Power | DM | ||
|
ADS630-R680
|
4 | - | - | - | 8 | 3 | 6 | 2 | 5 | - | ATX |
| Model | LAN | USB 2.0 | USB 3.0 | USB 3.1 | USB 3.2 | M.2 | COM | PCI | PCIe | Mini PCIe | Power | DM | ||
|
EAX-R680P
|
4 | - | - | - | 8 | 2 | 6 | - | 6 | - | ATX | |||
|
ADS630-R680E
|
4 | - | - | - | 8 | 3 | 6 | 2 | 4 | - | ATX |
| Model | LAN | USB 2.0 | USB 3.0 | USB 3.1 | USB 3.2 | M.2 | COM | PCI | PCIe | Mini PCIe | Power | DM | ||
|
IMB-X1711
|
2 | 4 | - | - | 8 | 3 | 6 | 2 | 5 | - | ATX | |||
|
CMS630-W480
|
2 | 7 | - | - | 6 | 3 | 6 | 2 | 5 | - | ATX | |||
|
EAX-W480P
|
3 | 2 | - | 6 | - | 1 | 8 | - | 6 | - | ATX | |||
|
CMS632-W480
|
2 | 4 | - | - | 4 | 2 | 1 | 1 | 6 | - | ATX |
| Model | LAN | USB 2.0 | USB 3.0 | USB 3.1 | USB 3.2 | M.2 | COM | PCI | PCIe | Mini PCIe | Power | DM | ||
|
CS650-C246
|
2 | 7 | - | 6 | - | 1 | 6 | 1 | 6 | 1 | ATX | |||
|
CS632-C246
|
2 | 7 | - | 6 | 1 | 6 | 2 | 4 | 1 | ATX | ||||
|
CS631-C246
|
2 | 6 | - | 6 | 1 | 6 | 1 | 6 | 2 | ATX | ||||
|
IMB-1710
|
2 | 6 | - | 6 | 2 | 10 | - | 7 | 1 | ATX |
| Model | LAN | USB 2.0 | USB 3.0 | USB 3.1 | USB 3.2 | M.2 | COM | PCI | PCIe | Mini PCIe | Power | DM | ||
|
CS630-Q370
|
2 | 6 | - | 6 | 1 | 6 | 5 | 2 | 1 | ATX |
| Model | LAN | USB 2.0 | USB 3.0 | USB 3.1 | USB 3.2 | M.2 | COM | PCI | PCIe | Mini PCIe | Power | DM | ||
|
X299 WS/IPMI
|
2 | 2 | 7 | 2 | 1 | - | - | 6 | - | ATX |
