Technical Features
| CPU | Single Socket R4 LGA 2066, Supports Intel® Core™ X-Series Processor Family |
|---|---|
| Chipset | Intel® X299 |
| RAM | Four Channels, 8 DIMMs, DDR4 2666/2400/2133 RDIMM, LR DIMM |
| LAN | 2 x GigE LAN, 1 x IPMI |

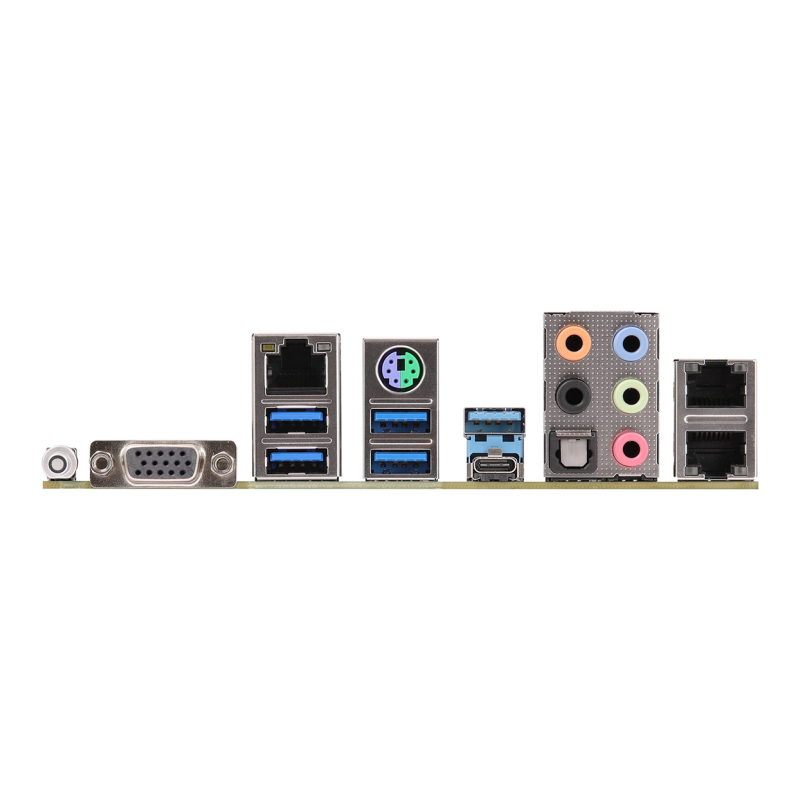

| I/O | 2 x USB 3.1, 7 x USB 3.0, 2 x USB 2.0 |
| Storage | 8 x SATA (6 Gb/s), 1 x SATA DOM, 1 x M.2 Key M, 2 x SATA (6 Gb/s) from 88SE9172 |
| Expansion | 2 x PCIe x16, 3 x PCIe x8, 1 x PCIe x4 |
| Operative range | – |
| Power | ATX |
| Notes | – |
