Technical Features
| CPU | 13th Generation Intel® Core™ Processors |
|---|---|
| Chipset | – |
| RAM | 1 x DDR5 4800MHz SO-DIMM, up to 32GB |
| LAN | 1 x 2.5GbE (RJ-45) Intel® I226IT/LM |

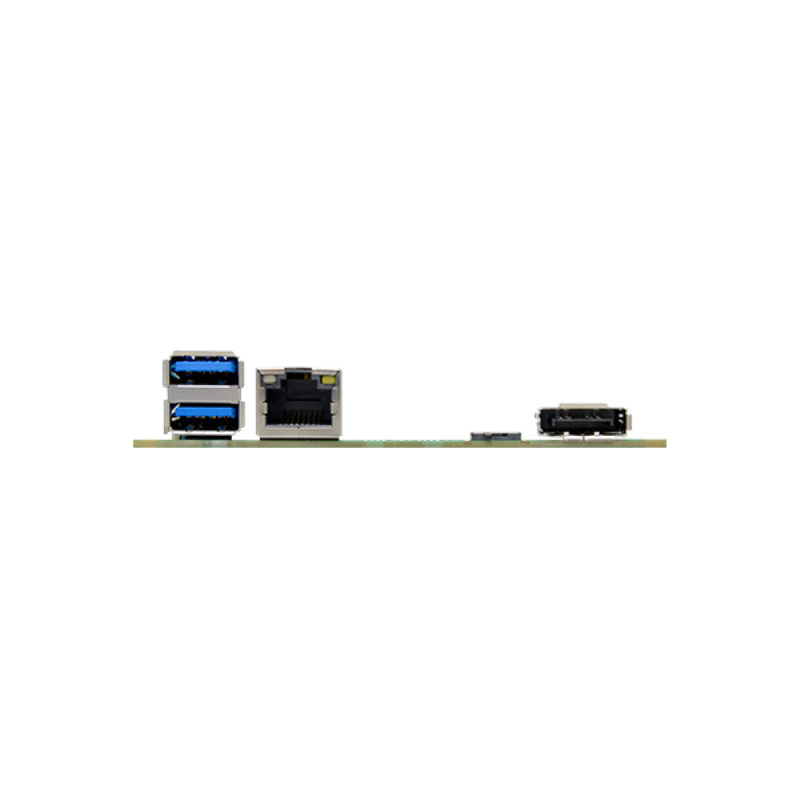

| I/O | 2 x USB 3.2 Gen 2, 1 x RS-232/422/485, 2 x USB 2.0 (1.27mm pitch), 1 x 8-bit DIO (1.00mm pitch) |
| Storage | 1 x M.2 B key 3042/2242 for storage (PCIe x2/USB 2.0/SATA 3.0) |
| Expansion | 1 x M.2 E key 2230 (PCIe x1/USB 2.0), 1 x M.2 B key 3042/2242 for 5G/LTE module (PCIe x1/USB 3.2 Gen1/SATA 3.0), with one Nano SIM slot |
| Operative range | -5°C – 65°C |
| Power | 12V |
| Notes | – |
