Technical Features
| CPU | AMD SP6 Socket supports 4th Generation AMD EPYC Processor (Max. TDP at 225W) |
|---|---|
| Chipset | |
| RAM | 6 x DDR5 4800/ 4400 MHz RDIMM up to 1.5TB |

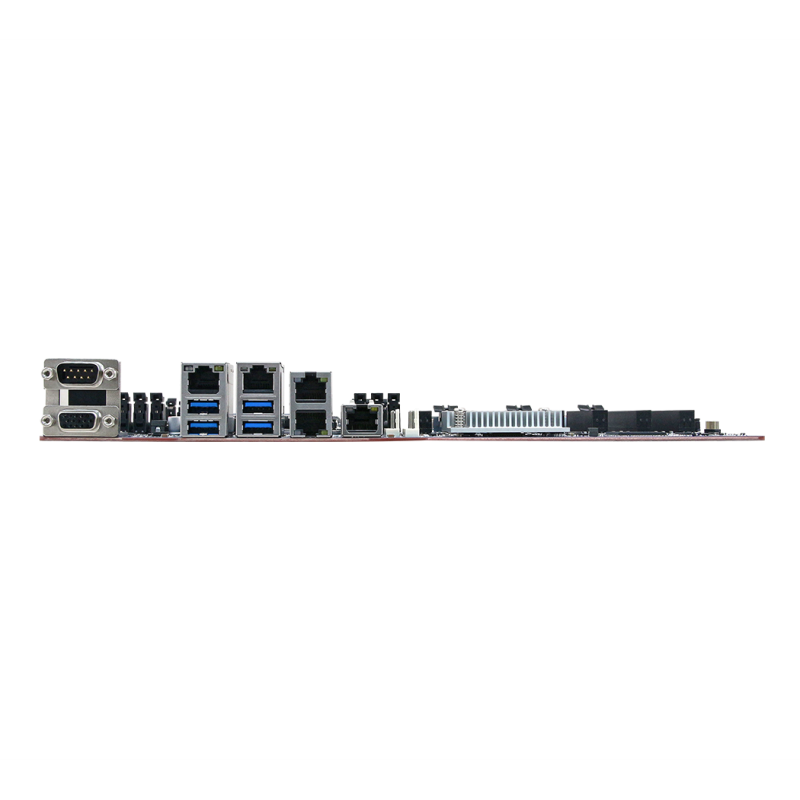

| LAN | 5 x RJ45; MGMT port for dedicated IPMI access only; LAN1 port for 1GbE shared with IPMI access; LAN2 port for 2.5GbE; LAN3 and 4 ports for 10GbE |
| I/O | 4 x USB 3.2 Gen1 ports; 2 x Internal USB 3.2 Gen1 ports; 1 x RS232 port; 1 x Internal RS232 port; 1 x VGA port; |
| Storage | 4 x SATA III (1 x Mini-SAS HD 4i (for 4 xSATA or 1 x4 NVMe interface) |
| Expansion | 3 x PCIe Gen5 x16 slots and 4 x PCIe Gen5 x8 slots Slot 1, PCIe 5.0 x8 Slot 2, PCIe 5.0 x16 Slot 3, PCIe 5.0 x8 Slot 4, PCIe 5.0 x16 Slot 5, PCIe 5.0 x8 Slot 6, PCIe 5.0 x16 Slot 7, PCIe 5.0 x8 (Slot 7 is the slot closest to CPU) |
| Operative range | 0° ÷ 45°C to support up to 225W TDP CPU |
| Power Connector | 1 x Std. 24 Pin ATX connector; 3 x 8 Pin SSI 12V connectors |
