General Features
| CPU | Single Socket LGA 2011 R3 Support Intel® Xeon Processor E5-1600/2600 v3 series |
|---|---|
| Chipset | Intel® C612 |
| RAM | Quad Channel, 8 DIMM, DDR4 2133/1866/1600 ECC DIMM, R DIMM, LR DIMM |
| LAN | 2 x GigE RJ45, 1 x IPMI |

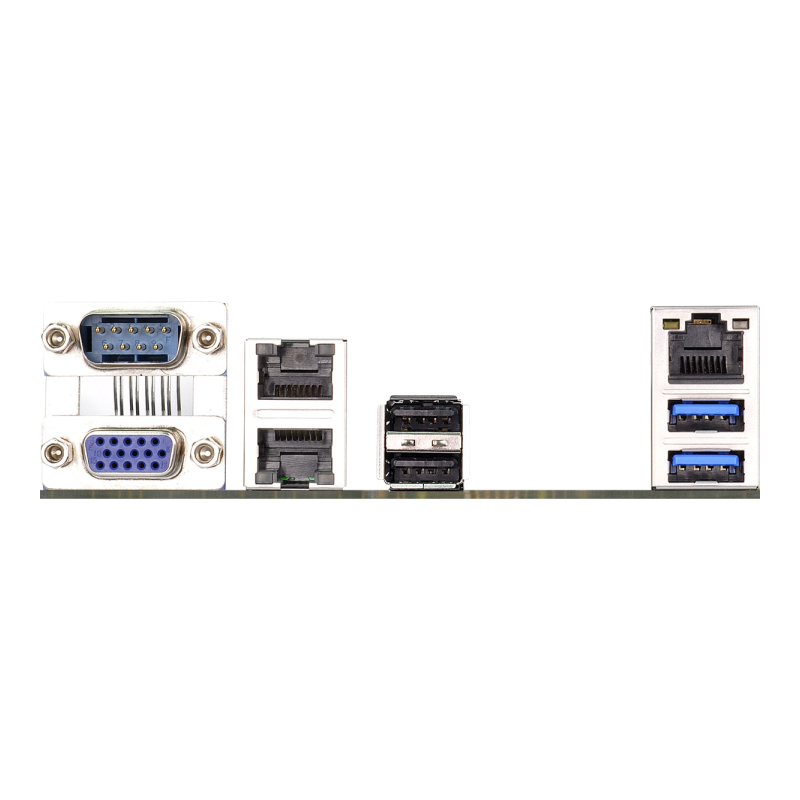

| I/O | 3 x USB 3.1, 4 x USB 3.0, 5 x USB 2.0 |
| Storage | 10 x SATA3 6.0Gb/s (1 support SATA DOM) (support RAID 0, 1, 5, 10), Marvell 9172: 2 x SATA3 6Gbps2 x SATA3 6Gbps |
| Expansion | 4 x PCIe 3.0 x16, 1 x PCIe 3.0 x8, 1 x M.2 Slot |
| Operative range | – |
| Power | ATX |
| Notes | – |
