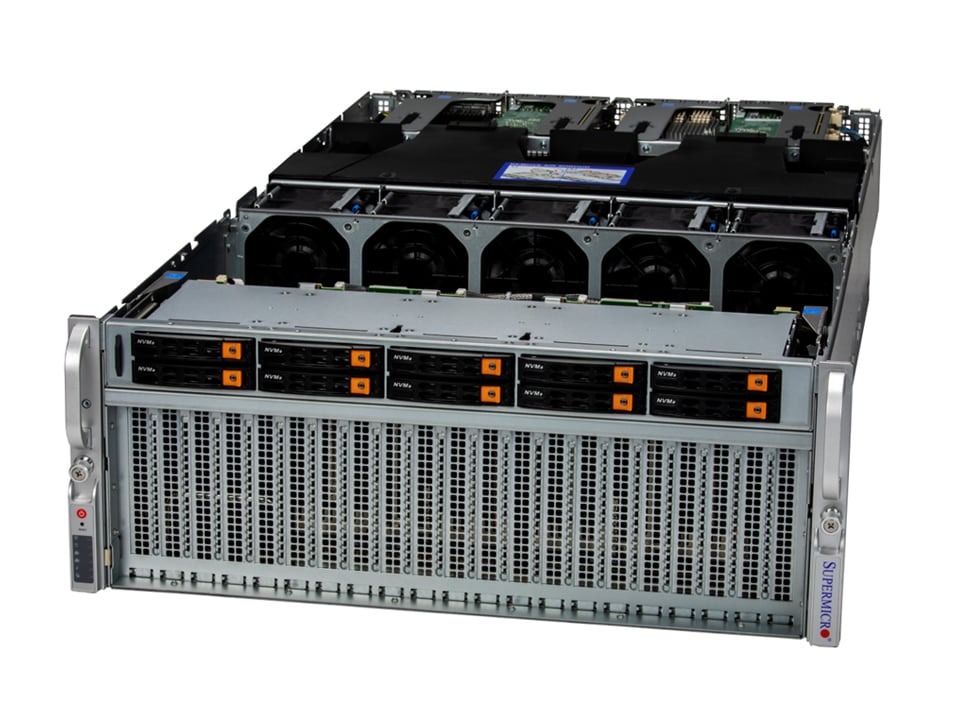

SYS-420GU-TNXR
Request Information
Technical Features
| CPU | Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors |
|---|---|

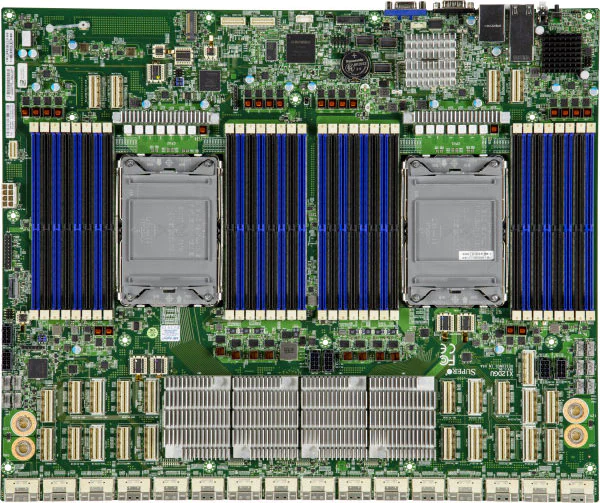

| Chipset | Intel® C621A Chipset |
| RAM | 32 DIMM Slots; Up to 8TB DRAM, 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM |
| LAN | 2x 10GbE BaseT with Intel® X710 |
| I/O | 2 x USB 3.1 Gen1 port(s), 1 x COM Port(s) (1 Serial Port) |
| Storage | 10x 2.5″ hot-swap NVMe/SATA drive bays (10x 2.5″ NVMe hybrid),1 M.2 NVMe OR 1 M.2 SATA3, RAID 0/1/5/10 support |

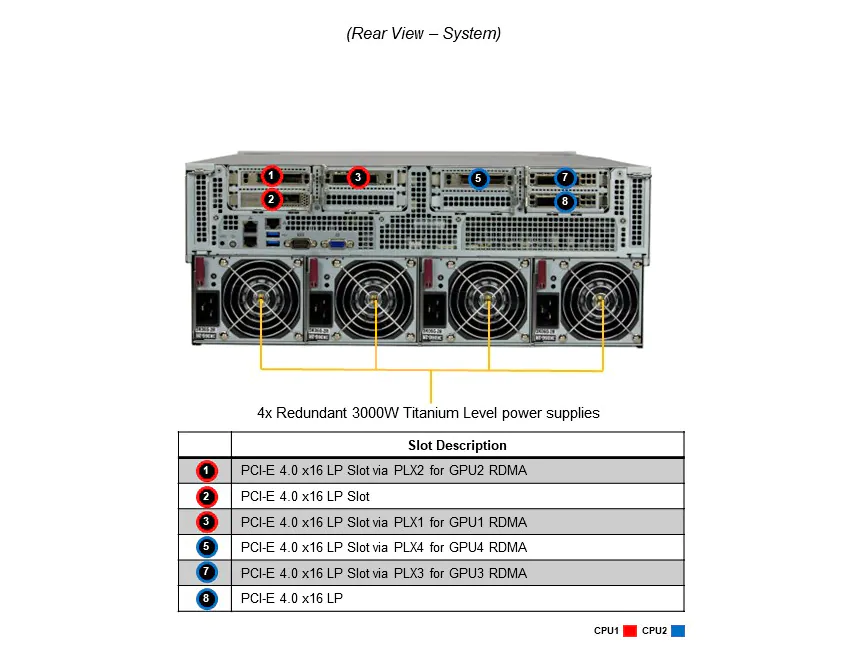

| Expansion | 6 x PCI-E 4.0 X16 LP Slots |
| Operative range | 10°C ~ 35°C (50°F ~ 95°F) |
| Power | 8x 3000W Redundant Power Supplies, Titanium Level |
| Notes | – |
