Caratteristiche Tecniche
| CPU | – 24-core Intel® Core™ i9/i7/i5/i3 Processor (14th gen, Raptor Lake-S Refresh) – 24-core 13th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake-S) – 16-core 12th Gen Intel® Core™ i9/i7/i5/i3 Processor (Alder Lake-S) |
|---|---|
| Chipset | Intel® R680E |
| RAM | 2 DDR4 3200MHz SO-DIMM, up to 64GB (ECC/Non-ECC) |
| LAN | 3 x Intel® I226 2.5GigE LAN supports TSN; 1 x Intel® I219LM GigE LAN supports iAMT D38999 connectors |
| I/O | 6 x USB 2.0; 4 x COM RS-232/422/485; 1 x DVI-I: Up to 1920 x 1080 @60Hz D38999 connectors |

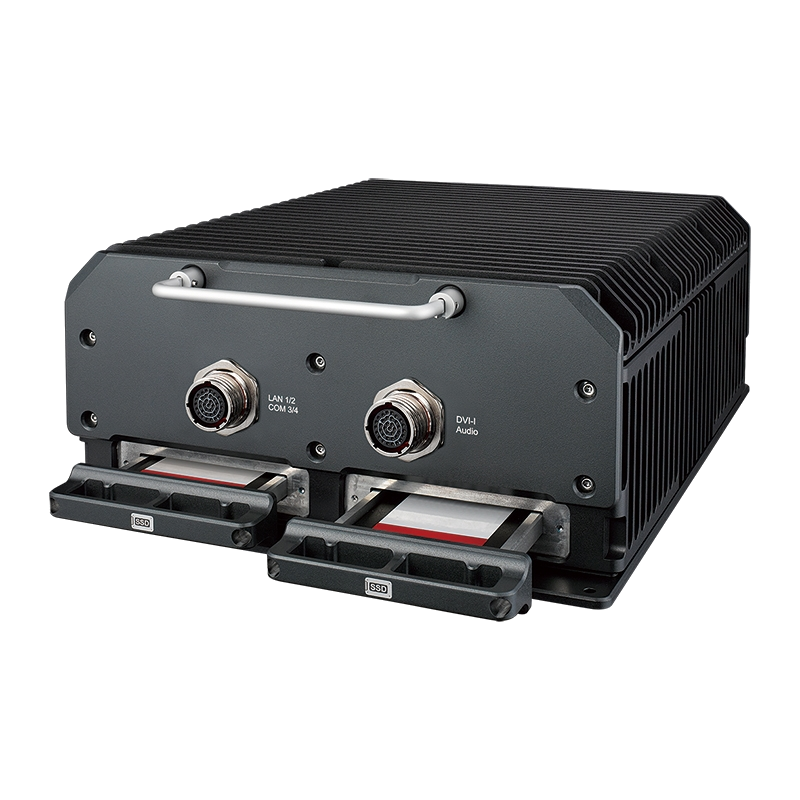

| Storage | 2 x SATA III (6Gbps) support software RAID 0, 1; 1 x SATA III (Mini PCIe Type, 6Gbps); 1 x M.2 Key M Socket (2280, PCIe x4); 2 x Front-access 2.5″ SSD/HDD Tray |
| Expansion | 1 x Mini PCIe Socket for PCIe/USB/SIM Card/Optional mSATA; 1 x M.2 Key B Socket (3042/3052, SATA/USB 3, default/USB 2); 1 x M.2 Key E Socket (2230, PCIe x2/USB) |
| Operative range | -40°C ÷ 65°C |
| Power | 9V ÷ 50V Wide Range DC Input, Ignition Control |
| Notes | – |
