General Features
| CPU | 8 Cores 9th Generation Intel® Xeon®/Core™ i7/i5/i3 (Coffee Lake Refresh) |
|---|---|
| Chipset | Intel® C246 |
| RAM | 2 DDR4 2666MHz Memory, up to 64GB (ECC/Non-ECC) |

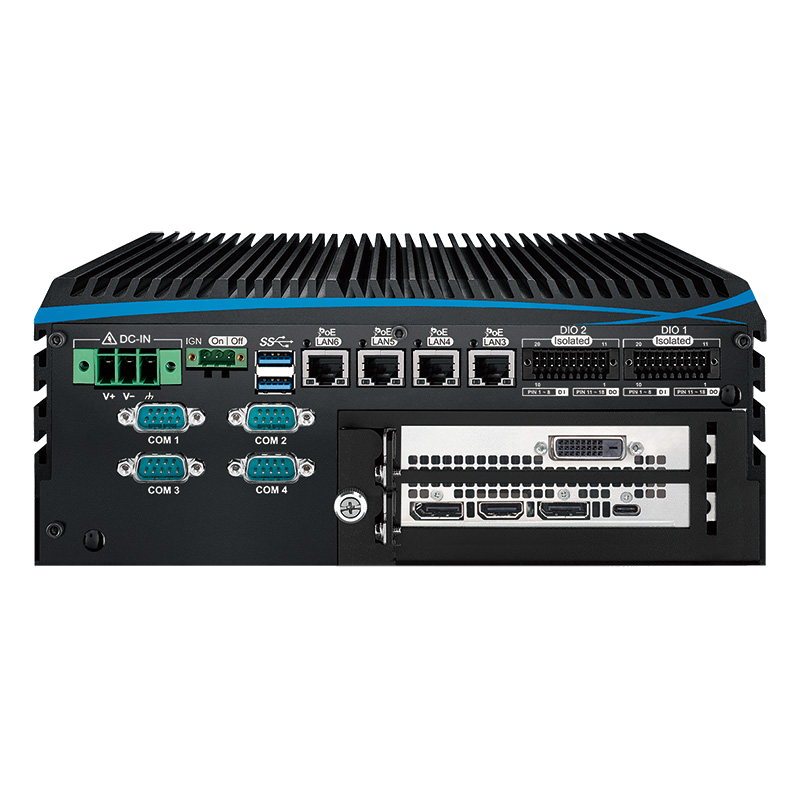

| LAN | 6 Independent GigE LAN with 4 IEEE 802.3at PoE+ |
| I/O | 32 Isolated DIO, 6 USB 3.1, 4 COM RS-232/422/485 |
| Storage | 4 2.5″ SSD Tray, 1 CFast, 1 M.2, 4 SATA III |
| Expansion | 2 Mini PCIe/mSATA, 1 M.2 |
| Operative range | -20°C to 45°C |
| Power | 12-36V DC Power Input, 80V Surge Protection, Ignition Power Control |
| Notes | 12V to 36V for PEG card TDP less than 130W and 24V to 36V for PEG card TDP more than 130W |
