Caratteristiche Tecniche
| CPU | 13th Gen Intel® Core (Raptor Lake-P) |
|---|---|
| Chipset | Intel® SoC |
| RAM | 2 x DDR4 3200MHz SO-DIMM, up to 64GB |
| LAN | 2 x Intel® I226 2.5GigE LAN supports TSN |

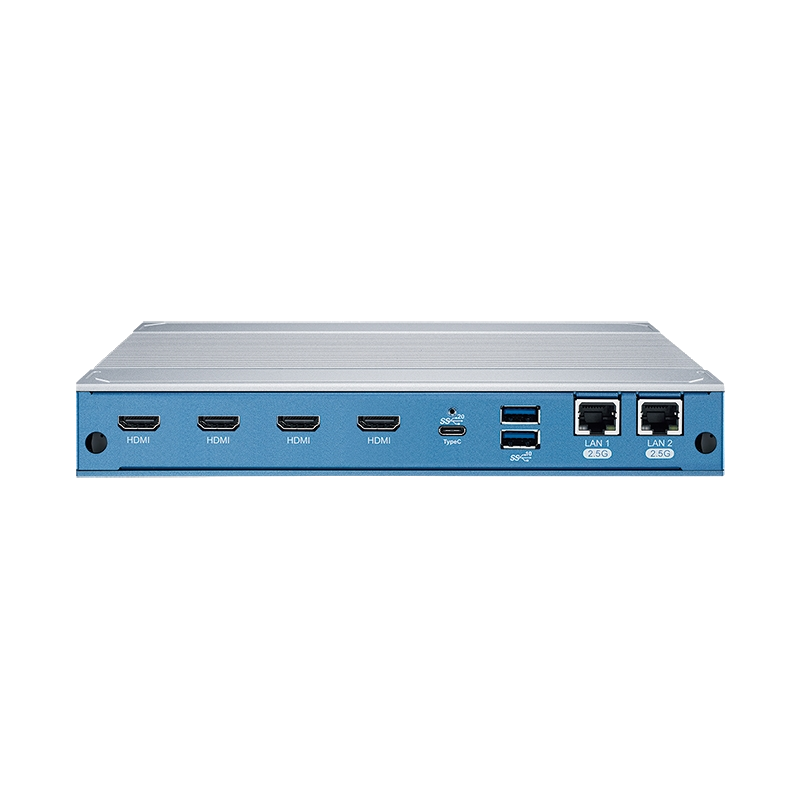

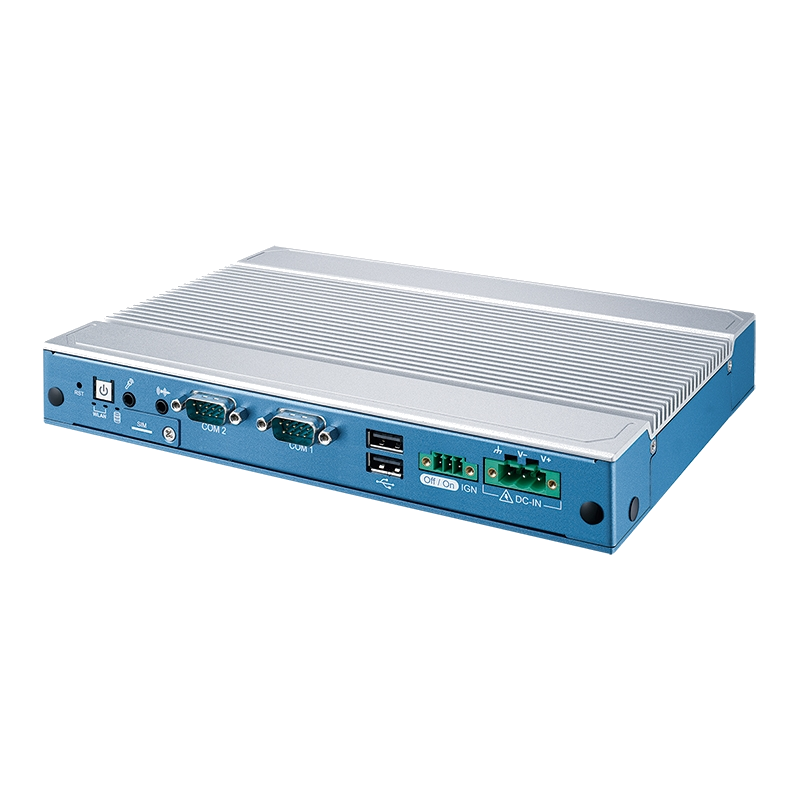

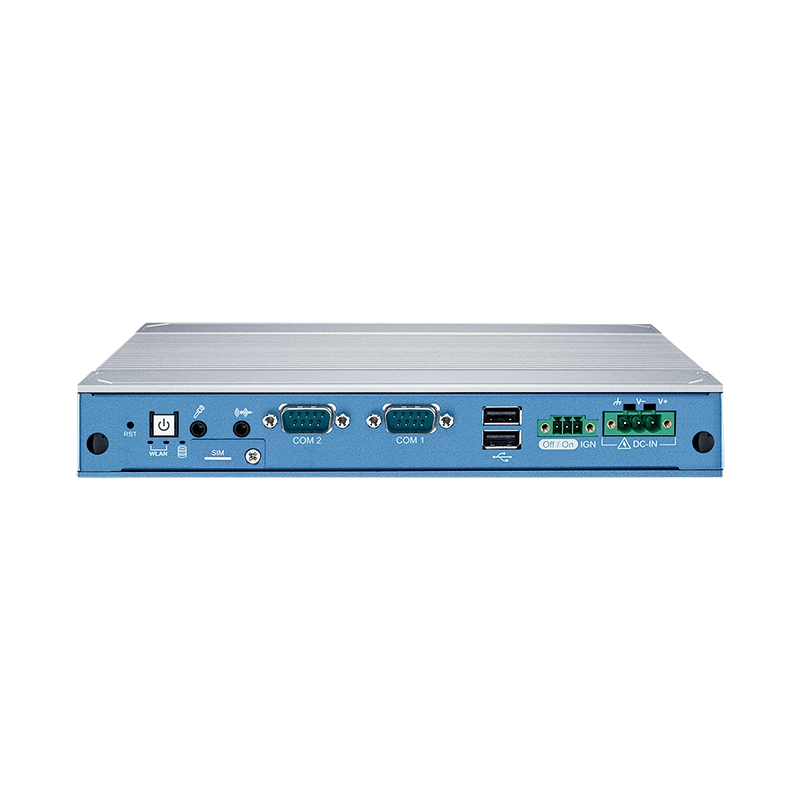

| I/O | 2 x USB 2.0 Type-A; 2 x USB 3.2 Gen 2 Type-A; 1 x USB 3.2 Gen 2×2 Type-C, support DP 1.4a; 2 x COM RS-232/422/485; 4 HDMI 2.0: Up to 3840 x 2160 @60Hz; 1 x DisplayPort 1.4a: Up to 3840 x 2160 @60Hz by USB Type-C |
| Storage | 1 x SATA III (6Gbps)(Optional); 1 x M.2 Key M Socket (2242/2280, PCIe 4.0 x4); 1 x M.2 Key M Socket (2242/2280, PCIe x2, default/SATA) |
| Expansion | 1 x M.2 Key B Socket (2242/3042, PCIe x1/USB 3, default); 1 x M.2 Key E Socket (2230, PCIe x1) |
| Operative range | -25°C ÷ 70°C |
| Power | DC 9V ÷ 55V |
| Notes | – |
