Caratteristiche Tecniche
| CPU | R32 : 8-core Arm® Cortex® A78AE v8.2 64-bit CPU R64 : 12-core Arm® Cortex® A78AE v8.2 64-bit CPU |
|---|---|
| Chipset | – |
| RAM | R32 : 1 x 32GB LPDDR5 DRAM R64 : 1 x 64GB LPDDR5 DRAM |
| LAN | LAN 1 10/100/1000 Base-T1 Ethernet GigE LAN, SPE Connector; LAN 2 to LAN 5 Intel i350 GigE IEEE 802.3at (25.5W/48V) PoE+ LAN, M12 X-coded Connector |

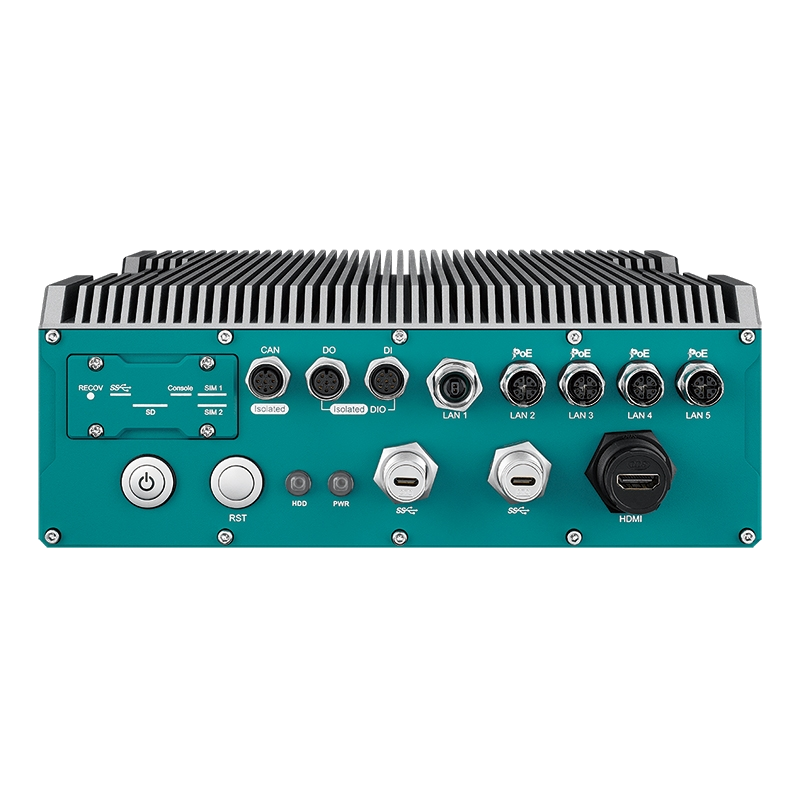

| I/O | 2 x USB 3.1 Gen 2 Type-C; 1 x M12 COM RS-232/422/485; 12 x Isolated DIO (6 DI, 6 DO); 2 x Isolated CAN Bus support Flexible Data-rate; 1 x Micro USB console debug port; 1 x Micro USB OS flash port; 2 x SIM Card Socket; 6 x Antenna for 5G/WiFi/4G/LTE/GPRS/UMTS |
| Storage | 2 x M.2 Key M Socket (2280); 1 x eMMC 5.1 64GB; 1 x Micro SD (External) |

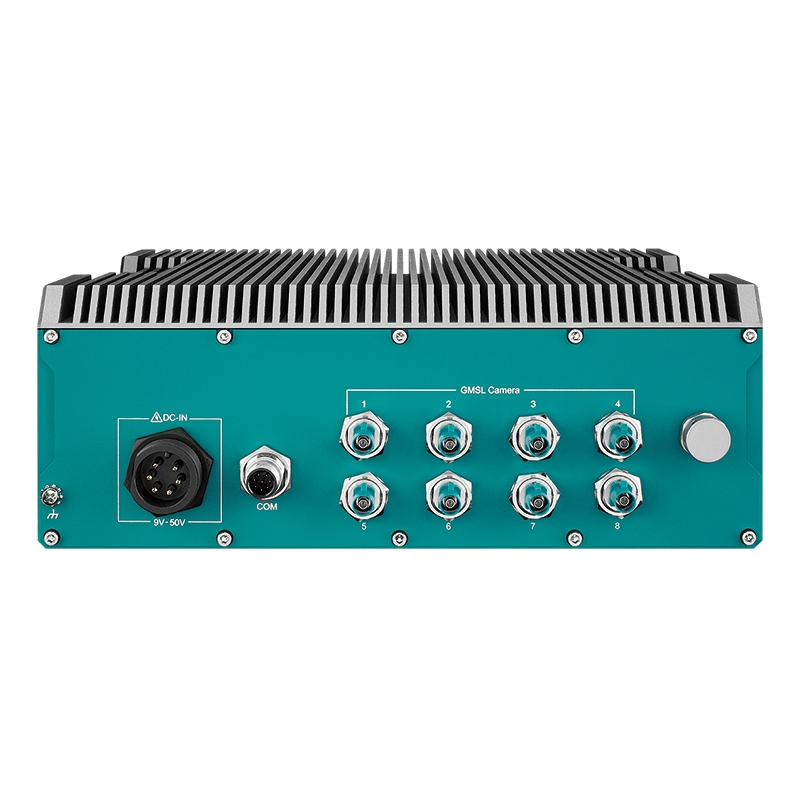

| Expansion | 1 x M.2 Key B Socket (3042/3052, USB); 1 x M.2 Key B Socket (3042/3052, PCIe); 1 x M.2 Key E Socket (2230/3042, PCIe/USB/UART); 8 x Fakra-Z connectors for GMSL 1/2 automotive cameras; Built-in Bosch 6-axis IMU, Altimeter, Magnetometer |
| Operative range | 50W TDP with 60W PoE load : -25°C ÷ 60°C; 50W TDP without PoE load : -25°C ÷ 75°C |
| Power | 9V ÷ 50V DC, Software Ignition Power Control |
| Notes | CE, FCC, EN50155, EN50121-3-2, EN62368-1 |
